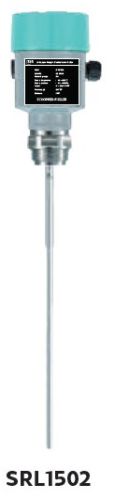

SRL1502 Rod Probe Radar Level Transmitter

₹ 24,000 - ₹ 35,500 / Piece

MOQ10 Piece
Frequency100MHz~1.8GHz
ApplicationLevel Measurement of Liquid Storage Tanks
Range6m
Accuracy±3mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 07ABMCS3475M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationLevel Measurement of Liquid Storage Tanks
Range6m
Accuracy±3mm
Process Pressure-0.1~4.0Mpa
Frequency100MHz~1.8GHz
Signal output4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
Explosion-proof GradeExia IIC T6 Ga; Exd IIC T6 Gb
Process ConnectionThread/Flange
Protection ClassIP68
Process Temperature-40~250°C

We offer the SRL1502 Rod Probe Radar Level Transmitter designed for precise level measurement of liquid storage tanks. With a range of 6m and an impressive accuracy of ±3mm, this transmitter operates at a process pressure of -0.1~4.0Mpa. Its frequency range of 100MHz~1.8GHz ensures reliable signal transmission, outputting data through various systems including 4~20mA/HART and RS485/Modbus. The transmitter features versatile process connections such as thread or flange, and can withstand process temperatures ranging from -40°C to 250°C. Certified with explosion-proof grades Exia IIC T6 Ga and Exd IIC T6 Gb, and boasting a protection class of IP68, this device is ideal for manufacturers, exporters, and suppliers seeking top-quality level measurement solutions.
