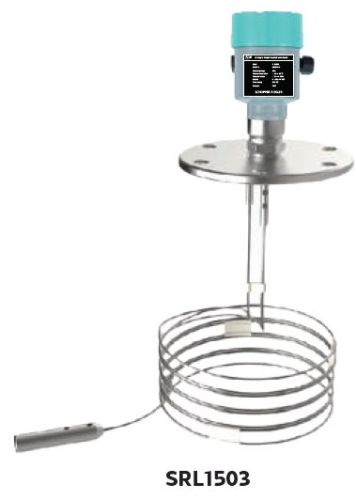

SRL1503 Weighted Cable Radar Level Transmitter

₹ 25,000 - ₹ 36,500 / Piece

Frequency100MHz~1.8GHz
ApplicationLevel Measurement of Solid Powder Silo, also Can Be Used for Liquid with Low Dielectric Constant.
Range30m
Accuracy±3mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 07ABMCS3475M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationLevel Measurement of Solid Powder Silo, also Can Be Used for Liquid with Low Dielectric Constant.
Range30m
Accuracy±3mm
Process Pressure-0.1~4.0Mpa
Frequency100MHz~1.8GHz
Signal output4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
Protection ClassIP68
Explosion-proof GradeExia IIC T6 Ga; Exd IIC T6 Gb
Process Temperature-40~250°C
Process ConnectionFlange

We offer the SRL1503 Weighted Cable Radar Level Transmitter designed for precise level measurement of solid powder silos up to 30m. With an impressive accuracy of ±3mm, this transmitter operates within a process pressure range of -0.1~4.0Mpa. Featuring a frequency range of 100MHz~1.8GHz and various signal output options including 4~20mA/HART, RS485/Modbus, this device ensures reliable data transmission. The transmitter is equipped with a flange process connection, suitable for temperatures ranging from -40~250°C. Additionally, it boasts an explosion-proof grade of Exia IIC T6 Ga; Exd IIC T6 Gb and a protection class of IP68. Ideal for manufacturers, exporters, and suppliers seeking top-notch level measurement solutions.
