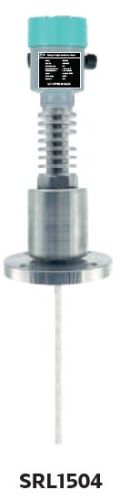

SRL1504 Coaxial Probe Radar Level Transmitter

We offer the SRL1504 Coaxial Probe Radar Level Transmitter designed for liquid level measurement in high-temperature and high-pressure liquid storage tanks. With a range of 6m and an accuracy of ±3mm, this transmitter operates at a process pressure of -0.1~4.0Mpa and a frequency range of 100MHz~1.8GHz. It provides signal output options including 4~20mA/HART 24V DC 2-wire/4-wire system, 4~20mA/HART 220V AC 4-wire system, and RS485/Modbus. The transmitter features process connections in thread/flange, operates in a process temperature range of -200~400°C, and is rated with explosion-proof grade Exia IIC T6 Ga; Exd IIC T6 Gb and protection class IP68. Ideal for manufacturers, exporters, and suppliers.
