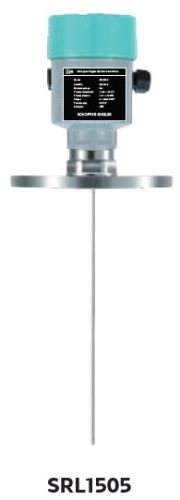

SRL1505 Flanged Rod Radar Level Transmitter

₹ 27,000 - ₹ 39,000 / Piece

MOQ10 Piece
Frequency100MHz~1.8GHz,500
ApplicationLevel Measurement of Corrosive Liquid Storage Tanks
Range6m,1
Accuracy±3mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 07ABMCS3475M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationLevel Measurement of Corrosive Liquid Storage Tanks
Range6m,1
Accuracy±3mm
Process Pressure-0.1~2.0Mpa
Frequency100MHz~1.8GHz,500
Signal output4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
Process Temperature-40~180°C
Process ConnectionFlange
Explosion-proof GradeExia IIC T6 Ga; Exd IIC T6 Gb
Protection ClassIP68

We offer the SRL1505 Flanged Rod Radar Level Transmitter designed for accurate level measurement of corrosive liquid storage tanks. With a range of 6m and an impressive accuracy of ±3mm, this transmitter operates at a process pressure of -0.1~2.0Mpa. Its frequency range of 100MHz~1.8GHz ensures reliable signal transmission, while the signal output options include 4~20mA/HART 24V DC 2-wire/4-wire system, 4~20mA/HART 220V AC 4-wire system, and RS485/Modbus. Featuring a flange process connection, this transmitter can withstand process temperatures ranging from -40°C to 180°C. It is certified with explosion-proof Grade Exia IIC T6 Ga and Exd IIC T6 Gb, with a protection class of IP68. Ideal for manufacturers, exporters, and suppliers seeking top-notch level measurement solutions.
