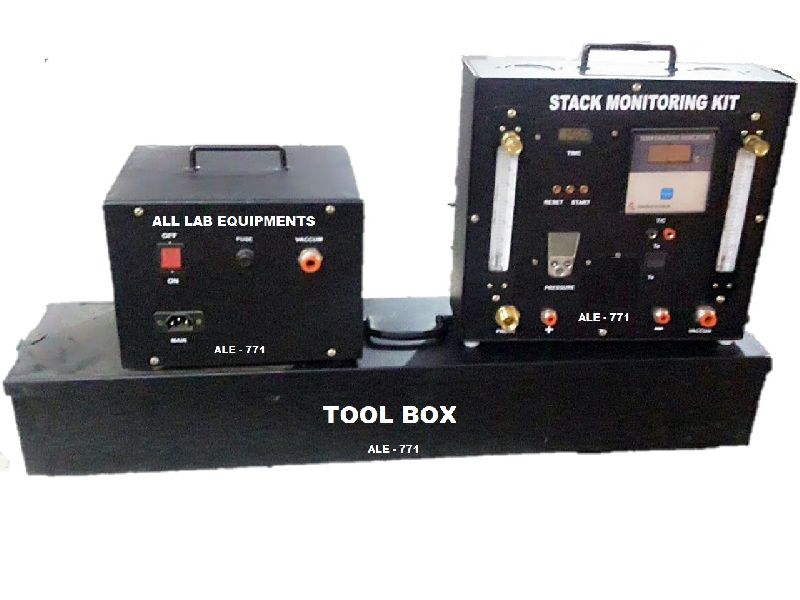

Stack monitoring kit

stack temperature range : ambient to 600 deg c

read on a digital pyrometer

stack velocity range : 3 to 60 m/sec

thermocouple : t/c sensor in ss 304 casing, length of

insertion : 0.6m with 2 m long cable

manometer : digital with 0 -1200 mm of h20 range

pilot tube : calibrated s-type fabricated-ss 304,

0.6m extendable to 1.2m

particulate sampling : 0 to 30lpm collection on

thimble type filter up to 0.3 micron rating

gaseous sampling : 0 to3 lpm collection in a set of glass impingers

rota meter : plastic body with 2% fsd accuracy, 0-30

lpm for pm and 0-3 lpm for gas sampling probe 5 : made from ss 304 tube, o.6m length extendable to 1.2m

(size 28mm id x 100mm long) or glass micro fiber thimble

(size 19mm id x 90mm long) accommodated in ice tray.

placed on rear side of instrument panel with a provision to keep ice.

nozzles : a set of 3 stainless steel nozzles

digital clock : 0-60 minutes, I second readout with

start and stop switches

sampling train: I no. Of 240 ml cap. & 3 no. Of 120 ml cap.

borosilicate glass impingers accommodated in ice tray, placed on the rear side of instrument panel with a provision to keep ice.

vacuum pump: monoblock rotary vane type, oil

lubricated, single phase motor (230v) with more

than 50lpm free flow capacity.
