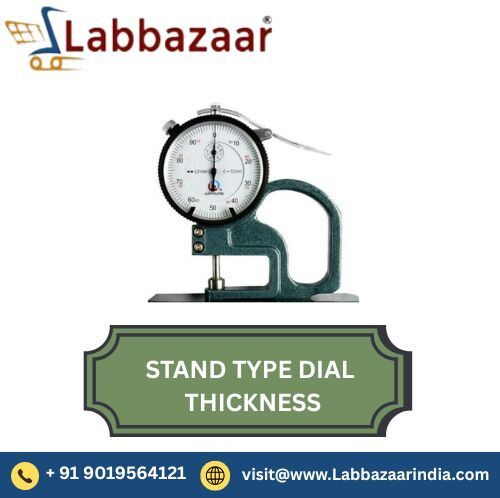

3,264 / piece Get Latest PriceProduct Specifications
Â
| Measuring Range | 0–10 mm, 0–25 mm, 0–50 mm (or 0–0.4 ", 0–1 ", 0–2 ") |
| Graduation (Resolution) | 0.01 mm, 0.001 mm (or 0.001 ", 0.0001 ") |
| Throat Depth | 30 mm, 50 mm, 100 mm, 150 mm (determines how far the sample can reach into the gauge) |
| Contact Point Type | Flat or spherical anvil, often with interchangeable tips |
| Contact Force | Typically 1–2 N (standardized for consistency in soft materials) |
| Dial Face Diameter | 40 mm to 60 mm |
| Frame Material | Cast iron, steel, or aluminum die-cast |
| Accuracy | ±0.02 mm or better |
| Stand Type | Bench stand with lifting lever or automatic lowering mechanism |
| Stand Base Dimensions | Depends on model, often 100×150 mm or similar |
| Stand Weight | ~2–5 kg depending on size and material |
