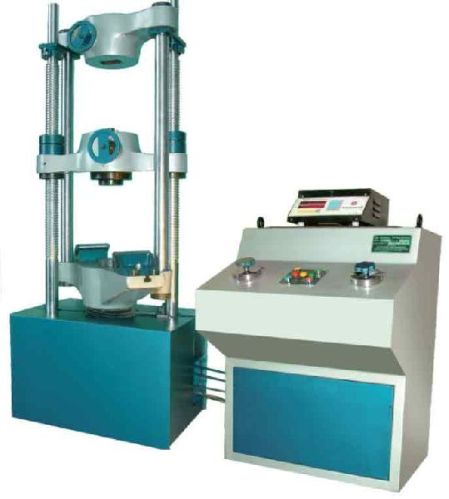

Static Servo Hydraulic Test Systems

Features:

• Load capacities: KUT (E): 100, 200, 400, 600, 1000, 2000 & 3000kN
• 4 column construction with excellent alignment and good shock absorption
• Dual test sapce design for reduced test set up time
• Lead screw driven crosshead to adjust test space
• Testing speed range: 0 to 300 mm/min
• Encoder based feed back for position control & display
• Position control resolution down to 0.01mm
• Servo proportional valives for precision servo control
• Long strokes up to 300mm
• Horizontal test space up to 850mm
• Tension test space up to 700mm
• Compression test space up to 850mm
• Works out of 3Ø 440 VAC
• Micro Processor based digital controller
• Calibrated pressure sensor for accurate load values
• Load accuracy ± 1% of read out value
• Speed accuracy± 1% of set speed
• Position accuracy ± 1% of read out
• Strain accuracy ± 1% of read out value

• Tensile, Compression, 3 – Point bend Static
• Fasteners, Rebars, Chains, Welds, Castings
• Shear tests
