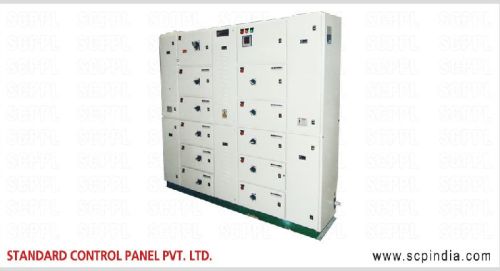

Sub Distribution Panel

Get Latest Price

ApplicationsOperation, Control & protection of distribution network
Bus Bar SystemInterleaved above 1600A
Type Tested forShort Time Current withstand Temperature Rise Degree of Protection
Form of SeprationUpto 3B/4B (Optional Type 5)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Standard Control Panel Pvt. Ltd.

Dhandari Kalan, Ludhiana, Punjab

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Form of SeprationUpto 3B/4B (Optional Type 5)
Feeder ConfigurationSemi Drowout or Fix Type
Degree of ProtectionIP42-IP54
System3 Phase, 3 or 4 wire, 50Hz
Rated CurrentUpto 3200 Amps
ApplicationsOperation, Control & protection of distribution network
Rated Insulation1000v
Ambient Temperature45 Deg C
Bus Bar SystemInterleaved above 1600A
Operational Voltage110/230v 415v AC
Rated Service Voltage690v
Bus BarAluminium or Copper
Ref. StandardIEC61439-12009, IS:8623
Short Time Current50KA for 1Sec, 105KA peak
Type Tested forShort Time Current withstand Temperature Rise Degree of Protection

The sub distribution panel or board consists of a basic frame with all the necessary electrical components such as main isolating switches, emergency shut-down mechanism, RCDs, line circuit breakers, controls and contactors for individual workgroups. The distributor can supply multiple workgroups with electrical power independently. We design & manufacture the Sub Distribution Panel according to the Customers' need through reliability, selectivity, durability & time of taking action to Product Quality which comply with cost effective, long life and application-wise
