GOYUM Sunflower Seed Oil Extraction Machine Manufacturer in Ludhiana Punjab India

GOYUM Sunflower Seed Oil Extraction Machine Mild Steel

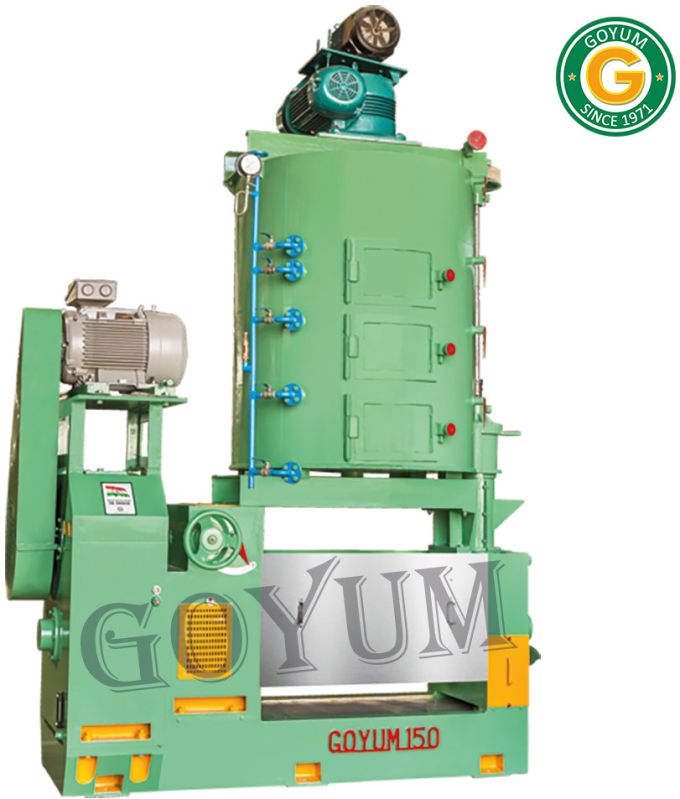

Name: Sunflower Seed Oil Extraction Machine
Brand: GOYUM
SKU: EI-6091277
Price: 2635000 INR
Availability: InStock
Rating: 4.5 (29 reviews)

Price:

26.35 Lakh -

29.33 Lakh / Piece Get Latest Price

Sold By : Goyum Screw Press

Send Inquiry

Product Specifications

BrandGOYUM
MaterialMild Steel
Driven TypeElectric
Length8’6”
Model NumberGOYUM 150
CertificationISO 9001:2008 Certified, CE Certified, ISO 14001 : 2015 Certified
PhaseThree Phase
ColorGreen
ConditionNew
Operating TypeSemi Automatic
ApplicationMultiseed Oil Extraction
Usage/ApplicationMulti Seed Oil Extraction
TypeOil Press
Warranty1 Year Against Manufacturing Defects
Country of OriginIndia
I Deal InNew Only
MethodHot and Cold Press Machine
Expeller Motor3 Phase, 40 HP, 1440 RPM
Breadth4’7”
Height13’ (With Four Stage kettle), 11’5” feet (With Three Stage Kettle)
Weight4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle)
Crushing Capacity15 – 17 Ton in 24 Hours
Chamber SizeDia 7.5” X Dia 6.5” X 45” Long
Kettle MotorFor 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

Sunflower Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Technical Specification

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM 150	15 – 20 TPD*	3 Phase 40 HP for Expeller 3 Phase 7.5 HP for Kettle	8.66 ft	6.33 ft	12.16 ft

(TPD stand for Ton Per Day (in 24 Hours) of Sunflower Seed Crushing Capacity.

Additional Information

Payment Terms L/CT/T
Port of DispatchMumbai / Mundra
Packaging DetailsWrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)
Delivery Time15 – 20 days, but confirmed delivery time will be provided at the time of confirmation.

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

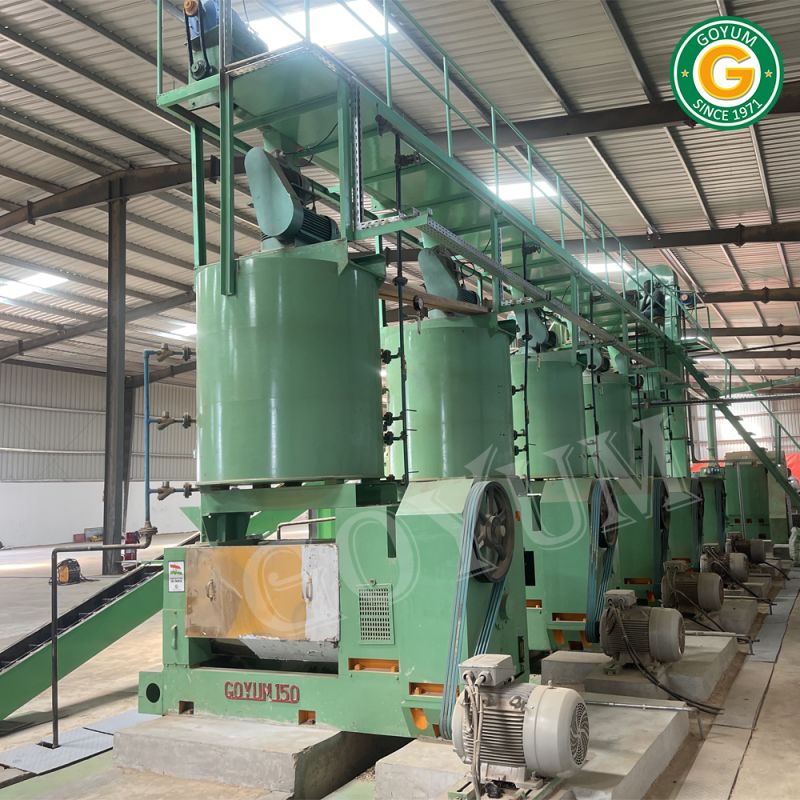

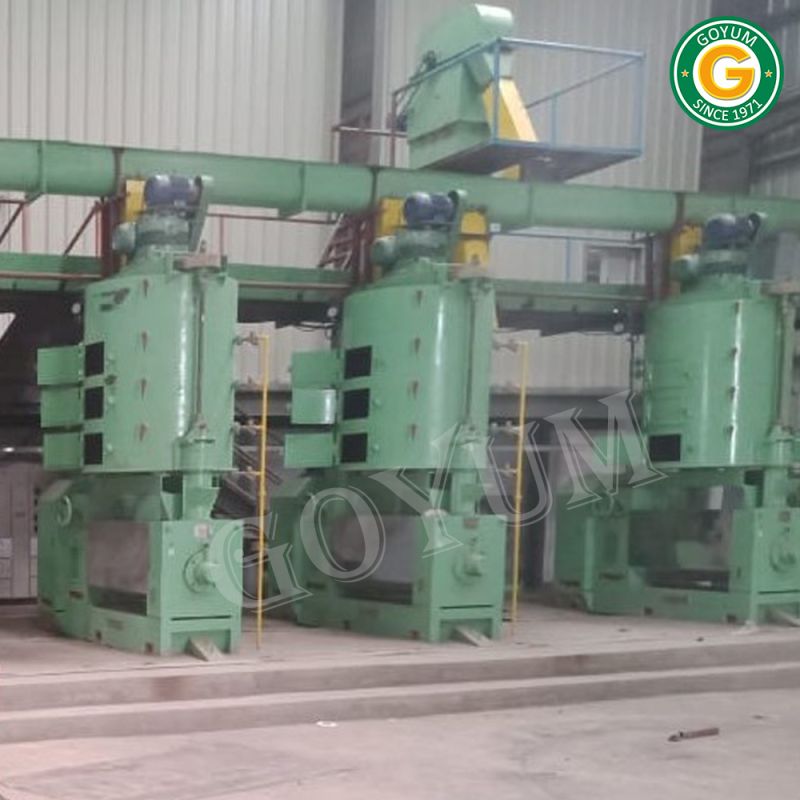

Product Images

Company Overview

Manufacturer Of Dehuller Machine, Destoner Machine, Decorticator Machine, Seed Cleaning Machine, Hammer Mill, Copra Cutter, Flaker Machine, Seed Cracker Machine, Copra Dryer, Oil Filter Press Machine, Pressure Leaf Filter, Polishing Filter, Vibro Separator Machine, Rice Bran Solvent Extraction Plant, Soybean Solvent Extraction Plant.
