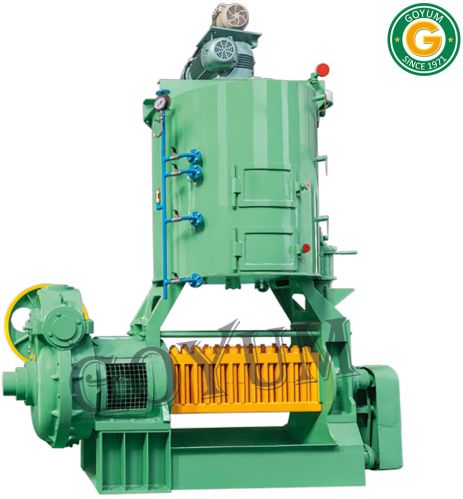

50 HP oil processing machine

Listing ID #6091204

Get Latest Price

Power50 HP
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

With rich experience and expertise, we have been able to emerge as a leading trusted manufacturer, exporter and supplier of Oil Processing machines. The Oil Processing machine is used to....

View More Details

Send Enquiry

Product Details

With rich experience and expertise, we have been able to emerge as a leading trusted manufacturer, exporter and supplier of Oil Processing machines.

The Oil Processing machine is used to extract oil from edible as well as non-edible oil seeds & nuts. We check the Oil Processing on defined quality parameters to provide global standard oil processing machines to our valued customers at cost effective prices.

Features:

Double Reduction Gear Box of Cast Iron Body and Mild Steel Fabricated Gears.
The Machine has to be Stopped for Adjusting the Cake Thickness.
Case Hardened Worm Assembly and Cone Point.
Main Worm Shaft can be withdrawn without disturbing the Gear Box.
Crammer Shaft gives Extra Cramming of the Seed or Cake in the Feed Body.
Superior Quality of Oil & Cake.
Steel Fabricated Base.
Chamber is Made from MS Plates and 3 Sizes: Ø6¹/₂ X 36″ Long.
Low Maintenance.
Cooking Kettle : 48″ Diameter, 3 or 4 stage Vertical unit with fabricated shell, steam jackets, agitators to prevent burning of seed, level indicator flap, center shaft driven by independent geared motor, steam inlet, condensate outlet, pipes, valves, fittings & all necessary accessories.

Technical Specifications

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM MK-IV	12 – 15 TPD*	3 Phase 50 HP for Expeller 3 Phase 5 HP for Kettle	8.8 ft	6.4 ft	9 ft

*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)

Technical Specification

Model	Capacity	Motor Power	Length	Breadth	Height
GOYUM MK-IV	12 – 15 TPD*	3 Phase 40 HP for Processing 3 Phase 5 HP for Kettle	8.6 ft	6.33 ft	9 ft

*(TPD stand for Ton Per Day (in 24 Hours) of Oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)

Company Details

GOYUM SCREW PRESS is a leading Project Engineering Company established in 1971 and now a prominent name in the Oilseed's Oil Extraction Plant, Edible & Non-Edible Oil Processing Plants & Allied Industry.
We are a Family Owned Company and Pioneer in Planning, Engineering, Manufacturing and Installation & Commissioning for Automatic Oil Mill Plant, Palm Kernel Oil Extraction Plant, Solvent Extraction Plant, Edible Oil Refinery Plant, Fish, Poultry & Animal Feed Plant, Oleo chemical Plant Flour Mill Plant, Rice Mill Machinery, EFB, MSW, Plastic & Industrial Shredder Used Engine Oil Re-Refining Plant, Waste Tyre Recycling Plant, Solar PV Solutions Water & Waste Water Treatment Plant, Cosmetic Plant, Food Processing Solutions on Turnkey Basis Worldwide.
Further, we also undertake the expansion of the existing plants with modern technologies.
We at GOYUM have a state-of-the-art manufacturing facilities spread in 27,000 Sq.m. covering production area for Fabrication, Welding, Machining, Assembly, Painting, Packaging, etc. In strive to deliver our valued customer best product, we keep on continuously improving our manufacturing system.
The plants offered by GOYUM are robust, flexible, reliable and efficient. These plants are based on the commercially proven technologies, which are not only energy efficient & environment friendly, but also cost effective.
We have supplied more than 750 projects on Turnkey basis which are running successfully in 6 Continents covering more than 60 countries.
The GOYUM is backed by a strong leadership, dedicated workforce and updated technology.
