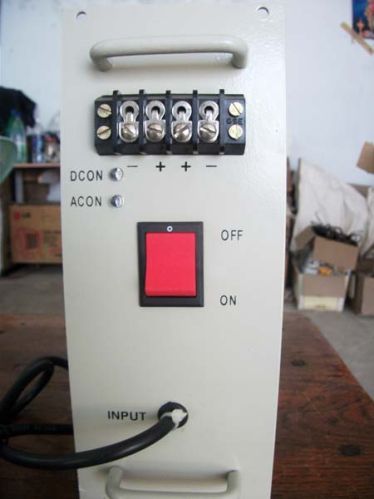

Switch Mode Power Supply Retailer in Hyderabad Telangana India

Switch Mode Power Supply, Efficiency : 83.5%

Sold By : Devi Electronics

Product Specifications

Business TypeService Provider

Preferred Buyer From : All over the world

Product Overview

We are engaged in supplying high-quality Switch Mode Power Supply. We fabricate Switch Mode Power Supply as per the industrial standards under the supervision of our experts. Our Switch Mode Power Supply is endowed with all the latest features that have led to its popularity amongst the clients. We offer Switch Mode Power Supply at reasonable prices.

Highlights :

Precisely designed
Long service life
High performance
Energy efficient

Specifications

Input SpecificationsÂ
Operating Voltage	230 VAC, 50 Hz.
Operating Voltage Range	160 to 270 VAC.
Frequency	47 to 53 Hz.
Input Current	2.7 amps maximum.
Power Factor	0.80Â Â (Typ).
Efficiency	88%Â (Typ).
Die electric Strength	1.5KV AC (I/P to O/P & Case).
Out Put SpecificationsÂ Â
Out Put Voltage	54 VDC.
Out Put Voltage Adjustment Range	48 to 54.5 VDC.
Out Put Current	6.25 amps.
Out Put Current Limit	7.25 amps maximum.
Out Put Power	350 Watts
Out Put Ripple	Less than 300 mV peak to peak.
Out Put Regulation	0.5 V.
Psophometric Noise	2 mV RMS.
Audible Noise	50 db.
Other Specifications
Indication	AC ON : Red LED DC ON :Â Blue LED
Dimensions	220 (H) x 86 (W) x 250 (D) mm.
Weight	2 kgs.
Input Connector	3 pin mains chord
Output Connector	4 pin terminal block.
