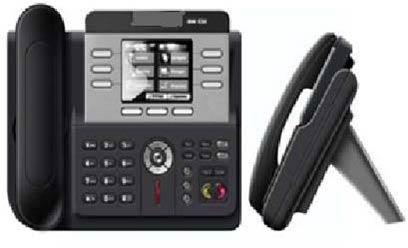

Tech Route IP Phone

IPTone 303 is a kind of voice communication terminal,
which is based on wide band, and is independent of PC .
Voice Features
 Support IAX2 and SIP RFC3261 synchronously
 Codec: G.711Au,G.722,G.722.1,G.723, G.729
 Echo cancellation: Support G.168, and Hands-free can
support 96ms
 Support Voice Gain Setting, Jitter Buffer, VAD, CNG, Dual
Registration, call forward, and Peer to Peer
 SIP support SIP domain, SIP authentication
(none, basic, MD5), DNS name of server, Peer to Peer
 SIP support Pubic & Private server. Can connect to ISP
and Private SIP server at the same time
 SIP support dual public server
Network Features
 WANLAN: Support Bridge and Router model
 Support basic NAT and NAPT
 Support PPPoE for xDSL
 Support DHCP Client on WAN
 Support DNS Relay, SNTP Client,802.1P,DiffServ
Maintenance And Management
 Support Boot Monitor
 Can upgrade firmware through boot monitor
 Can configure through Web, keypad, Telnet
 Can upgrade firmware and configuration file through HTTP,
FTP, TFTP
Ordering IPTone 303
Information IPTone 303e ( Support PoE)
Item
IPTone 303
Adapter Input: 100-240VAC 50-60Hz
(InputOutput) Output: +5VDC, 1000mA
WAN 10100Base-T RJ-45 for LAN
Port
LAN 10100Base-T RJ-45 for PC
Power
Consumption Idle: 1.4W Active: 1.8W
LCD Size 3 inch (74 x 28mm) . Segment LCD
Operation
Temperature 0 to 40
Relative
Humidity 10 to 65%
Main Chipset Broadcom Chipset, Flash 2M, SDRAM
8M
SDRAM 128Mbits
Flash 16Mbits
Dimension
(WxHxD) 11.6x8x3 in. (295x205x75mm)
Weight 2.07lb.(0.94kg)
