Tensile Tester

We are offering tensile tester.
introduction

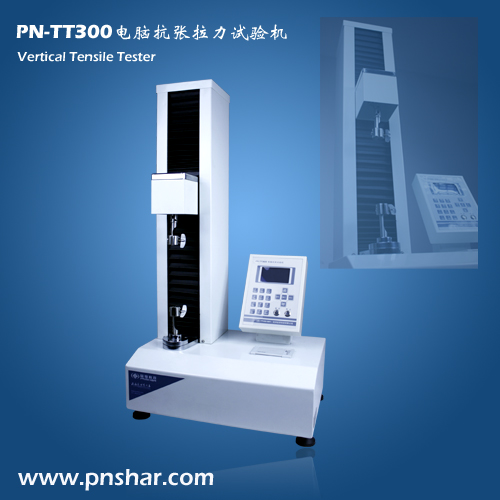

pn-tt300 type computer vertical tensile tester is a new type of test developed by our company according to the specification of iso and national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory, human engineering design criteria and advanced double cpu micro computer processing technology. It is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance.
1. Tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, tensile energy absorption index of paper
2. Tensile force, tensile strength, peel strength and elongation of foil and aluminum polymer tape
3. Tensile strength, elongation and tensile modulus of elasticity of plastic membrane
4. Heat-sealing strength, tensile strength and peel strength of food packing bags
5. Adhesive strength, edge strength, tensile strength and elongation of sanitary napkins
6. Peel strength and tensile strength of pressure sensitive adhesive tape
7. Fracture strength and elongation of synthetic fiber
8. Easy slide degree of pulling chain.
applications
paper, newsprint, cartons board, packaging papers, liner, medium, foils, low elongation films, plastic film
standards
meets iso2872�iso2874�gb/t4857.3�gb/t4857.4.. ...
specifications
1. power supply: ac220vâ±10% 2a 50hz
2. Measuring range: 4 options: 0�30n /0�100n/0�300n/0�500n
3. Tensile velocity: 1.0�400.0 mm/min (can be adjusted digitally)
4. Interval of clamping heads: 20�350 mm(can be set digitally)
5. Minimum distinguishhability: 0.1n (when 0~30n, the distinguishability is 0.01n)
features
1. Vertical structure with selectable velocity between 1~400mm/min
2. Large tensile running distance. It can elongate for 350 mm .
3. High speed return after the test, which can improve the test efficiency.(the return velocity can be set by user.)
4. Imported step motor with servo control adopted, which can locate precisely. (the interval of clamping heads can be set by user, which has high precision.)
5. The test result can be measured, statistical and printed automatically and the data can be saved.
6. Blue color lcd display, which can be display the tensile time and loading force real time ,as well as tensile graph.
7. New pc software able to manage and analyse data and can communicate with pc.
8. Thermal printer, high speed and no noise .
9. Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.
