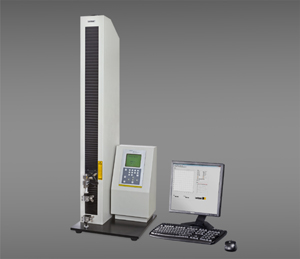

Tensile Tester XLW(PC)

Characteristics
Minicomputer control; LCD displays data, results and curves;
Manu interface, PVC operation board;
Standard measurement units;
Selectable two measuring ranges;
1000mm super long stroke;
7 independent testing programs, including tensile, peeling, tearing and heat seal, etc.;
7 testing speeds;
Multi-functions of parameter set, printing, inquiry, clear and calibration, etc.;
Analyze test results of batch samples, puts out Max., Min., and average data;
Group sample statistical analysis and calculation, historical data comparison;
Computer data storage, multi-means inquiry;
Memory function when power failure, overload protection, position limit protection and auto return;
RS232 interface;
Network transmission interface for LAN data management and Internet data transmission.
Technical Indexes
Specification: 500N or 50N (optional)
Accuracy: ±0.5％of reading force
Test Speed: 50 100 150 200 250 300 500mm/min
Test Width: 30mm(standard clamp)
50mm(optional)
Stroke: 1000mm
Dimensions: 450mm(L) x 450mm(B) x 1410mm(H)
Power: AC 220V 50Hz
Net weight: 68kg
Standards
ISO 37, JIS P8113, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 13022, GB 8808, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, QB/T 2358, QB/T 1130
