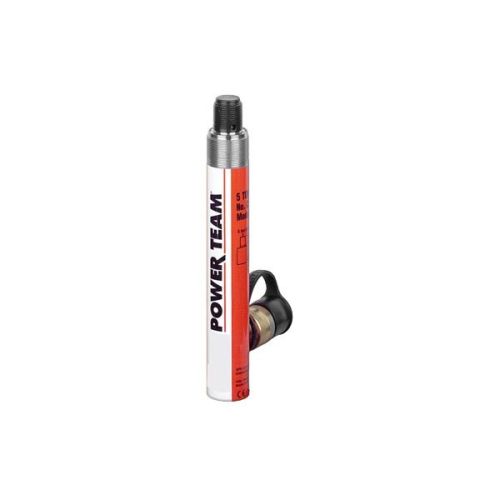

Threaded End Single Acting Spring Return

CategoryHydraulic Products
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Spring-Return. Threaded piston rod end and base threads accommodate accessories and adapters Description THREADED PISTON ROD END AND BASE THREADS ACCOMMODATE ACCESSORIES AND ADAPTERS. Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting. A 9796 3/8″ NPTF female half coupler is standard with each cylinder; oil port threads are 3/8″ NPTF.

View More Details

Send Enquiry

Company Information

Integrated Systems Tools

MG Road, Secunderabad, Telangana

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 36AGRPJ2053M1Z0

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ASME B30.1 10,000 PSI / 700 BAR

ORDER NUMBER	CYLINDER CAPACITY (TONS)	STROKE (MM.)	OIL CAPACITY (CU. CM.)	BORE DIAMETER (MM.)	CYLINDER EFFECTIVE AREA (SQ. CM.)	METRIC TONS AT 700 (BAR)	WEIGHT (KG.)
C55CBT	5	133,4	85	28,6	6,4	4,5	2,0
C106CBT	10	155,6	228	42,9	14,4	10,2	4,7
C1010CBT	10	257,2	375	42,9	14,4	10,2	6,3
C256CBT	25	158,8	528	65,1	33,3	23,4	11,1
C2514CBT	25	362,0	1.205	65,1	33,3	23,4	18,2
