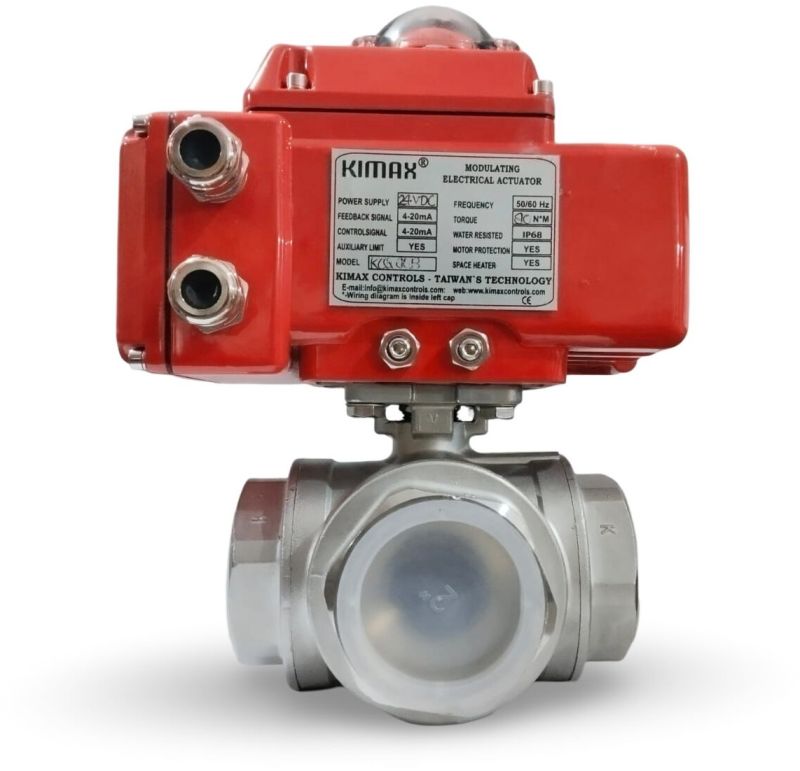

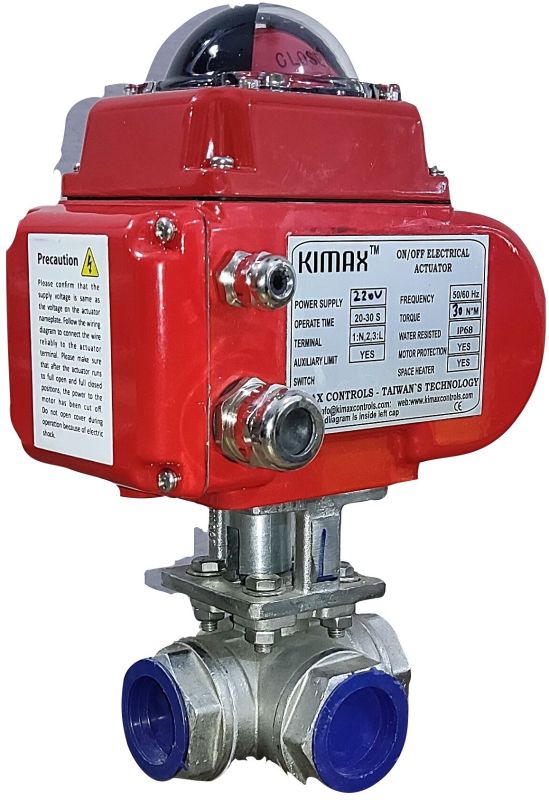

Three Way Electrical Ball Valve Manufacturer in Delhi India

Three Way Electrical Ball Valve, Brand Name : Kimax

Name: Three Way Electrical Ball Valve
Brand: KIMAX
SKU: EI-8398388
Price: 1000 INR
Availability: InStock

Price:

1,000 -

10,000 / piece Get Latest Price

Sold By : Kimax Controls Pvt. Ltd.

Send Inquiry

Product Specifications

MaterialDuctile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) / Carbon Steel (A105/WCB), Low Carbon Steel (LCB, LF2) - Please Consult For Any Special
Brand NameKIMAX
Size15mm (1/2\"), 20mm (3/4\"), 25mm (1\"), 40mm (1.5\"), 50mm (2\"), 80mm (3\"), 100mm (4\")
Pressure Rating1000 PSI (PN 63), 2000 PSI (PN 125), 4000 PSI, 6000 PSI, 10000 PSI, PN 250, PN 400, 150#, 300#, 600#, 900#, 1500#, 2500#
SeatNBR/ EPDM/ PTFE/ TEFLON/METAL SEATED
Ball MaterialDuctile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) - Please consult for any special
EndsFlanged Raised Face (RF), Ring joint (RTJ), SW (SOCKET WELD), BW (BUTT WELD) Screwed/Threaded: FNPT, MNPT, NPT, BSPP, BSPT
Supply TypeManufacturer

Preferred Buyer From : India only

Product Overview

BALL VALVE

Type : 3 Way
Ends : Flanged Raised Face (RF), Ring joint (RTJ), SW (SOCKET WELD), BW (BUTT WELD) Screwed/Threaded: FNPT, MNPT, NPT, BSPP, BSPT
Size: 15mm (1/2"), 20mm (3/4"), 25mm (1"), 40mm (1.5"), 50mm (2"), 80mm (3"), 100mm (4"),
Body Material : Ductile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) / Carbon Steel (A105/WCB), Low Carbon Steel (LCB, LF2) - Please consult for any special
Ball Material : Ductile Iron (DI)/ Cast Iron (CI)/ Stainless Steel (SS304)/ Stainless Steel (SS316) - Please consult for any special
Seat : NBR/ EPDM/ PTFE/ TEFLON/METAL SEATED
Pressure Rating : 1000 PSI (PN 63), 2000 PSI (PN 125), 4000 PSI, 6000 PSI, 10000 PSI, PN 250, PN 400, 150#, 300#, 600#, 900#, 1500#, 2500#

ELECTRICAL ACTUATOR

Type: On Off / Modulating
Design: Compact Quarter Turn
Voltage: 220 VAC, 110 VAC, 24 VAC, 24 VDC, 380 VAC, 415 VAC
Input-Output Signal: 04-20 mA

Additional Information

Port of DispatchEx Works Delhi
Delivery Time1 day

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Manufacturer Of Thermoplastic Electrical Butterfly Valve, Air Filter Regulator, directly mounted electro pneumatic linear positioner, electro-pneumatic linear positioner, electro pneumatic rotary positioner, Limit Switch Box, Asynchronous Motor Compact Quarter Turn Electrical Actuator, Super Capacitor Powered Fail Safe BLDC Compact Quarter Turn Electrical Actuator, compact electrical actuator motor, On / off Compact Electrical Actuator, Modulating Compact Electrical Actuator (BLDC Motor), Modulating Compact Electrical Actuator, Nano Size Quarter Turn Electrical Actuator, Air Filter Regulator Lubricator, Volume Booster Valve.
