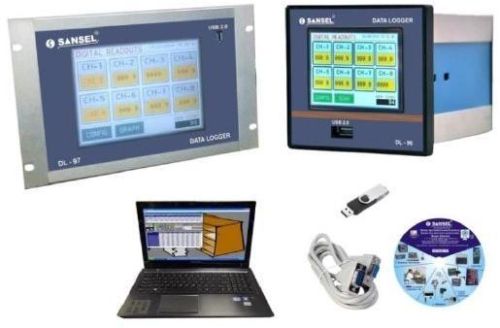

SANSEL Plastic Touch Screen Data Logger, Voltage : 220 V For Monitoring

Features :

•  Multi colour TFT display
•  Easy touch screen to configure & copy the datas
•  8 , 16 , 24 , 32 Channel Inputs with fixed & Universal Inputs
•  Analog Inputs like Thermocouple , RTD, mA, mV , V
•  Internal Memory for Datas upto 25,000 records
•  USB 2.0 for PEN drive data transfer
•  Parallel port provided for direct printout the storage datas
•  PC Interface through RS 485 or RS 232 or USB or Ethernet (TCP/IP)
•  Common Alarm Output with H/L Settings for all channels
•  Easy Mounting , Compact Size and rugged
•  Supply 230V AC

Specifications:

• Model : DL 96/97
• Display : Multi colour TFT display with Touch screen
• No. of Channel : 8 or 16or 24 or 32 channel
• Password Access :Provided for all configuration settings
• Analog & Temp. Inputs
• (selectable for Universal Model) : RTD- PT100 TC-J,K,R,S, mA, mV, Volt
• Input Range (optional against order) : O)RTDPI10099.9 to 300.0 C
• (-199.9 to 300.0 optional)
• (2) 0-20 mA:-999 to 4000(-1999 to 9999 optional)
• (3) 4-20 mA999 to 4000
• (4) 01Vdc:-999 to 4000
• (5) 05 Vdc-999 to 4000
• (6) TC J:0to 700 °C
• (7) TC-K0 to 1200°C
• (8) TC-S:0to 1600° C
• (9) TC-R:0to 1600°C
• Alarm Output : 1 or2Common Relay(5ARated)
• Aarm Set point : High & Low Set point tor each channel(user selectable)
• Log Interval : 1sec to 24 hour (selectable)
• PC software : Provided With logging, Alarm Setup, Record, Graph
• PC Communication : RS 232 or RS 485 or USB or Ethernet (TOP/IP)
• Baud Rate : 19600 bps
• Printer port : Parallel printer port provided
• USB Connecton : USB2.0Tor PENdrive data transter
• Termperature drift : ≤0.01% FSC(typical 50 ppm)
• Elecromagnetic Compatibility : TEC6T0OOE4KVI5KFZIEC6TOOO-4-5, 4KV
• Response time : ≤1.5 seconds if digital filter parameter is set as 0 or 1
• Automatic pilot time : Approx12s or 2s confiqurable
• Enclosure : Aluminium case
• Mounting : Panel Mounting
• Operating Environment : 0 to 50C 20 to 95.% RH non condensing
• Weight : 1kg
