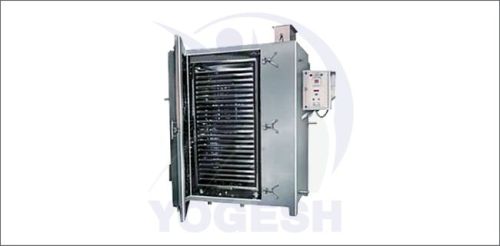

Tray Dryer Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

EXTERNAL: 2MM THKINTERNAL: 2MM THKMOC: cGMP SURFACE FINISH: EXTERNAL: Buffed to matt finishINTERNAL: Buffed to mirror finish. INLET & OUTLET: All dryers have a 5 micron pre filter r at the inlet....

View More Details

Send Enquiry

Company Information

Yogesh Pharma Machinery Pvt. Ltd

Vatva, Ahmedabad, Gujarat

View Number

Member Since 22 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

EXTERNAL: 2MM THK
INTERNAL: 2MM THK
MOC: cGMP

SURFACE FINISH:

EXTERNAL: Buffed to matt finish
INTERNAL: Buffed to mirror finish.

INLET & OUTLET:

All dryers have a 5 micron pre filter r at the inlet and a manually infinite adjustable damper at the outlet.

DOOR:

Doors at provided at the front and / or rear side of the dryer. Door lips are lined with silicon rubber gasket to prevent any leakages. Suitable locking is provided for the doors.

HEATING:

Dryers are normally supplied with either steam/ electric/ thermic fluid / hot water heating system. Suitable heating coils / caloriefiers / controlling unit are provided in the dryers.

TEMPERATURE CONTROL:

Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.

TRAYS:

Trays are available in S.S. 304/ 316 q. All trays are fully die pressed and with coved corners. Trays are buffed to mirror finish. Trays are also available in aluminum / Polypropylene / FRP / M.S. galvanized as per clients requirements.

TROLLEY:

Trolley is provided in the dryers to accommodate trays in it. Trolley trucks are used to load and unload the trays into the dryer.

CONTROL PANEL:

Automatic Control panel is fitted on the side of the dryer. If consists of Starters, contactors, safety relays, CKT breakers, indicating lamps, push buttons , timers, controllers etc.

TECHNICAL SPECIFICATION :

MODELS	APM-TD-12	APM-TD-24	APM-TD-48	APM-TD-96
Loading capacity	12 Trays	24 Trays	48 Trays	96 Trays
External Dimension in mm	W D H 1370 X 530 X 940	W D H 1370 X 940 X 940	W D H 1980X1020X1880	W D H 3320X1900X1880
Internal Dimension In mm	840 X 430 X 840	840 X 860 X 840	1020 X930 X1830	1960 X930 X1830
No of Doors	One	One	One	Two
No of Blowers	One	Two	One	Two
No of motors/H.P.3 PHASE 415 VOLTS.	1/0.5 H.P.3 phase 415 volts.	1/0.5 H.P.3 phase 415 volts	1/1 H.P.3 phase 415 volts	2/1 H.P.3 phase 415 volts
