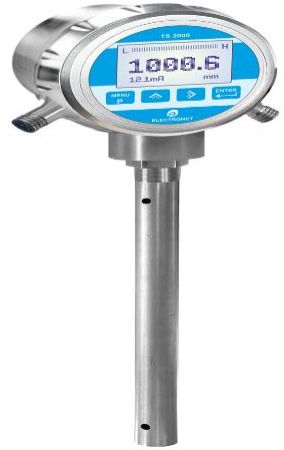

TS2000 CLT Capacitance Level Transmitter Switch

Capacitance Type Level Transmitter Features

• Capacitance-type level transmitter

• Suitable for conductive and non-conductive liquids

• Durable SS-316 enclosure for excellent corrosion resistance

• IP-68 protection for harsh, wet, and outdoor environments

• Backlit LCD display for clear visibility

• Switch functionality for versatile control and monitoring

• RS-485 (MODBUS RTU) communication for effortless system integration and remote access

Technical SpecificationsPerformance Characteristics

• Measuring Range: 100 mm to 15000 mm

• Probe Types:

  • Single Rod (up to 2000 mm)

  • Coaxial (up to 2000 mm)

  • Rope Type (above 2000 mm)

• Output: 4–20 mA

• Relay Output: 1 Relay (Optional)

• Communication: RS-485 MODBUS RTU (Optional)

• Accuracy: ±1% F.S.

• Linearity: ±1%

• Response Time: 1 second

• Temperature Coefficient: ±0.01% per °C

Process Conditions

• Process Temperature: Up to 200°C

• Process Pressure: Up to 16 kg/cm²

• Operating Temperature: –20°C to specified limit

• Humidity: 5% to 95% non-condensing

Construction

• Probe Material: PTFE + SS-316

• Electronics Enclosure: SS-316

• Protection Class: IP-68 (Weatherproof)

• Electrical Connection: M12 Connector

• Display: Backlit LCD

Power

• Power Supply: 18–36 VDC

• Power Consumption:
