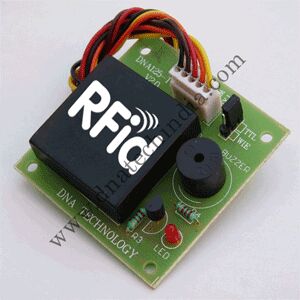

The TTL RIFD reader is a contact less proximity read device that supports em410x series unique tags works at industry-standard 125 KHZ frequency. It is a compact plug and play device. The module has a built in antenna. By using the serial interface the device can be connected to a PC via max232. It can be interfaced directly to micro controller. It has two optional output selection viz ttl(uart) and weigand which can selected via external jumper setting. This module is best suited for applications in access control, time and attendance, asset management, handheld readers, immobilizers and other rfid enabled applications.
TTL RFID reader features:
5v TTL uart interface.
plug and play, needs regulated 5v to become a reader.
low power consumption.
no repeat reads.
led and beeper indicates tag reading operation.
excellent read performance without an external circuit.
compact size and cost-effective.
a very efficient module for portable readers.
range up to 10cm.
ttl rfid reader application:
access control
handheld readers
asset management
time and attendance
robotic navigation
payment system
inventory tracking
