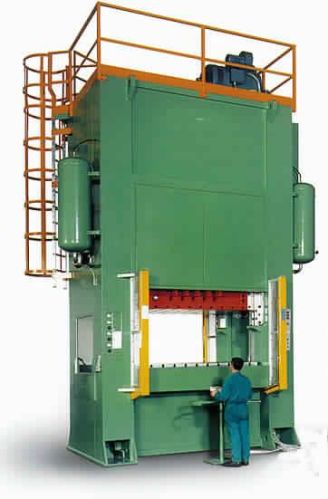

Two Point H Frame Presses

Get Latest Price

Sold By : Mankoo Presses India Pvt Ltd

Send Inquiry

Product Specifications

Supply TypeSupplier, Retailer

Product Overview

Preferred Buyer From : All over the world

Two Point Frame Press series is a two point, straight side press with a fabricated, unitized frame designed to offer an optimized solution for minimal deflection to.

Specification
Two Point Presses H Frame Presses Crank Type or Crankless Type
Capacity ( Tons)		200	200	200	250	250	250	315	315	315
Bolster area L-RxF-B		1500x1200	1800x1200	2500x1300	1500x1000	1800x1200	2500x1300	1500x1000	1800x1200	2500x1300
Slide area L-RxF-B		1400x800	1700x1000	2400x1100	1400x800	1700x1000	2400x1100	1400x800	1700x1000	2400x1000
Stroke length (fix)		200	200	200	200	200	200	200	225	250
Shut height (SDAU)		450	450	450	500	500	550	550	550	550
Day light (SUAU)		650	650	650	700	700	750	750	775	800
Slide Adjustment (motorised)		100	100	100	110	110	125	125	125	125
No. of slide stroke (SPM)		25	20	20	25	20	25	20	20	20
Main Motor (HP)		25	20	25	25	25	30	30	30	40
Req.air pressure for pneumatic clutch ( Kg/Cm2)		5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Die Cushion	Capacity (Tons)	20	20	20	25	25	25	30	30	30
	Stroke Length	110	110	110	110	110	110	110	125	140
	Req. Air pressure (Kg/Cm2)	5	5	5	5	5	5	5	5	5

Specification
Capacity ( Tons)		400	400	400	500	500	630	630	630
Bolster Area		1500x1000	1800x1200	2500x1300	1500x1000	1800x1200	1500x1000	1800x1200	2500x1500
Slide Area		1400x800	1700x1000	2400x1100	1400x800	1700x1000	1400x800	1700x1000	2400x1300
Stroke Fix		200	225	250	200	200	200	225	250
Shut Height		600	600	600	650	650	700	700	700
Day Light		800	825	850	850	850	900	925	950
Slide Adjustment		125	125	125	150	150	175	175	200
No. Of Slide Stroke		25	20	20	25	25	25	20	20
Main Motor (HP)		40	40	40	50	50	60	60	60
Req.air pressure for pneumatic clutch ( Kg/Cm2)		5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Die Cushion	Capacity (Tons)	40	40	40	50	50	75	75	75
	Stroke	110	125	140	110	125	110	125	140
	Air Pressure	5	5	5	5	5	5	5	5

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Hot Forging Presses, C FRAME PRESSES, DROP FORGE HAMMER, Cross Shaft Press, H Frame Presses, Two Point H Frame Presses, Shearing UnderCrank, Shearing OverCrank, Friction Screw Press Down Stroke, Forgings Screw Press Upstroke, Ungeared High Speed Press, Two Point H Frame Ungeared High Speed Press, Knuckle Joint Presses, H Frame Cross Shaft, C Frame Press.
