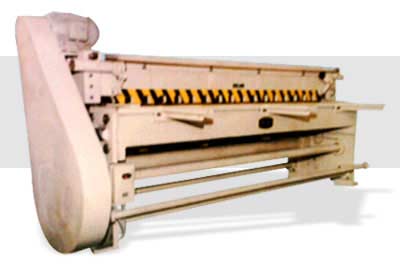

Under Crank Guillotine Shearing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our Under Crank Guillotine Shearing Machine is known for its modern design. These Under Crank Guillotine Shearing Machines are manufactured in compliance with machine tool standards and offer reliable service. Owing to their sturdy construction, these Under Crank Guillotine Shearing Machines offer smooth performance. Features Smooth operationRobust constructionOptimum performanceDurableResistant to wear-and-tear

View More Details

Send Enquiry

Technical Specifications

Model No.	LSU-1 Geared	LSU-2 Geared	LSU-3 Geared	LSU-4 Geared	LSU-5 Geared
Shearing Length (mm)	1250	1500	2000	2500	3000
Shearing Capacity	4	4	4	4	4
Depth of Thorat (mm)	120	120	120	120	120
Max. Back guage adjustment	500	600	600	600	600
Size of blades (in segments)	1270x65x16	1575x65x16(2)	1015x65x16(4)	2540x75x18(4)	1016x75x18(6)
Length of cut in one strock (mm)	1250	1500	2000	2500	3000
No. of strockes per minute	60	50	415	45	45
Power required	5 / 1440	7.5 / 14440	10 / 1440	10 / 1440	12.5 / 1440
Floor area (L x W x Ht) approx	2275x1200x1450	2500x1375x1650	3000x1375x1650	3650x1375x1650	4950x1375x1850
