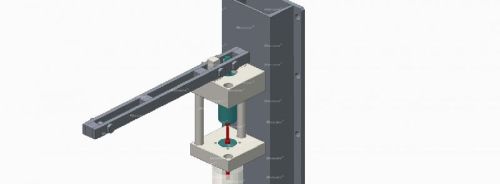

UNI AXIAL TENSILE LOADING Machine

APPLICATION:

• Horizontal/ Vertical Submerged Setup in order to study Hydrogenation not only precipitated from extension, but from all contact surface
• Ring or Tubular Specimen
• With Cathode Mesh

• Specimen Type: Cylindrical with or without V Notch; Square cross section with or without notch; Flat Specimen
• Gauge Length: 50 mm
• Effective Axial Tensile Load: Max up to 2000 kilograms
• Clamping: Sockets of M 12 X 1.75 P or M 16 X 2 P for Cylindrical/ Square Specimens; Pyramid serrated jaws for Flat Specimen or Wedge Grips- Refer to Wedge Grip
• Power Supply: Output: 0 to 30 V and 0 to 5 amp variable; Input 230 V AC I Phase 15 amp. (Other Power Supply on reques

The Me

Mchanism is for loading Test Specimen (Under Tensile Load) with extension for Electrolytic Charging for Hydrogenation in order to study the effect of Hydrogen on the Mechanical Properties of various steel.
