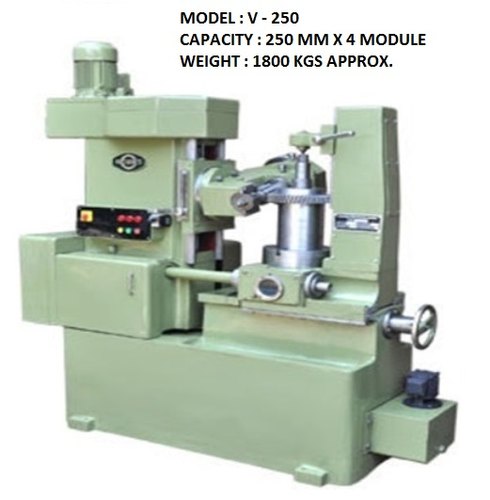

Maximum Continuous Output (Max. Pitch)

4 Module/ 6 D.P

Diameter of Gear with support

10 ~ 250 mm

Minimum  number of  Teeth

5

Maximum  Face width for Spur Gear

250 mm

Face capacity for Helical Gear - Helix Angle 15⁰

180 mm

Distance between Hob spindle & surface of the table

75 to 400 mm

Axis to axis distance of Hob Spindle to table

10 to 180 mm

Diameter of Work table

260 mm

Maximum Diameter of Hob

90 mm

Maximum Length of Hob

110 mm

Diameter of Work Arbour and Hob Arbour

32 mm

Hob speeds in R.P.M.

80, 100, 130

Feed of  Hob slide

0.2 to 2 mm

Main Drive Motor

1.5  H.P.

Coolant Pump

0.16  H.P.

Floor Space required with Cover                 -  Closed

1650  x  620 mm

-      Open

2080  x  1480 mm

Weight of the Machine (Approx.)

1800 Kg.

Height  of the Machine

1900 mm
