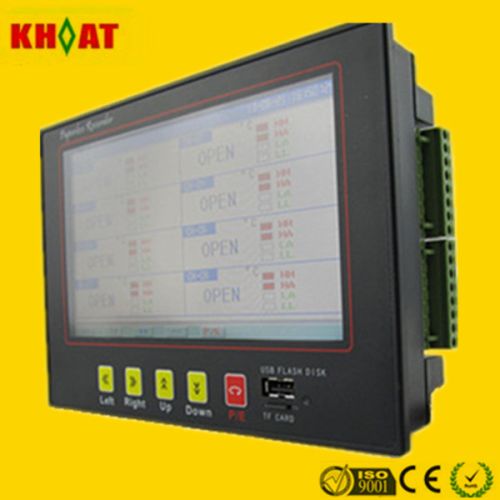

Universal Super-thin 8 Channels Data Logger

We are offering kh800g universal super-thin 8 channels data logger. Kh800g is high quality super-thin color data logger(195*145*60.5mm, up to 8 channels), using the advanced technology, to be designed high quality and performance, isolated, high accuracy, universal use, to be aimed to monitor, record, analyze the processes in various industry application.
application
petroleum, chemical, pharmaceutical, metallurgy, paper, electricity, nuclear power, food, cement, building, aviation, medical university lab, marine, sewage treatment etc
various displays
graphic display as bar-graph, real-time trending, history trending memory, real time circular chat, history circular chat memory and alarming state display.
pc support software
history data transferred to usb flash drive or tf card can be viewed to personal computer (data analysis software)
history and real time data by rs485 rs232 can be viewed to personal computer (dcs software)
specification
accuracy :±( 0.2%fs+1) digit
power supply:100-240vac;24vdc
display:7.0'', 320*240 tft color lcd display
input channels: 1,2,3,.8, completely photoelectronic isolation.
Input: universal input.
Input signal
input type reference ranges
thermocouple b
s
k
e
j
t
n
300.0 to 1800.0°c
-50 to 1700.0°c
–50.0 to 1300.0°c
0.0 to 800.0°c
0.0 to 100.0°c
-200-350°c
0-1300°c
resistance bulb pt100
cu50
cu100 –200.0 to 600.0°c
–50.0 to 150.0°c
–50.0 to 150.0°c
dc voltage
1-5v
0-5v 1.000 to 5.000v
0.000 to 5.000v
dc current 0 to 10ma
4 to 20ma 0.000 to 10.000ma
4.000 to 20.000ma
output module
• relay alarm output
• rs485 communication port
• ethernet modbus-tcpip port
• rs232 printing port
• tf card port
• usb port
dimension:195*145*60.5mm
environmental temperature:0-50°c
environmental humidity:0-85%rh
