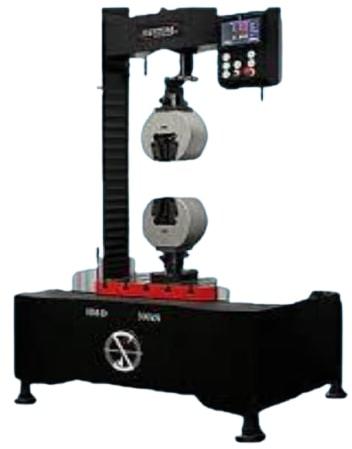

Contact SupplierA universal testing machine (UTM), also known as a universal tester, materials testi machine or materials test frame, is used to test the tensile strength and compressiv materials.
Since 2018 we've been on a mission to improve every aspect o our customers can achieve consistent and accurate results, ev,
A Team of qualified professionals Comprising of a collective experience of more than 25 years in the industry.
| Max capacity (kN) | 100 | 200 | 400 | 600 | 1000 |
|---|---|---|---|---|---|
| Minimum graduation (kN) | 0.05 | 0.1 | 0.1 | 0.1 | 1 |
| Clearance for tensile at fully descended working piston (mm) | 50-700 | 50-700 | 50-700 | 50-800 | 50-800 |
| Clearance for compression at fully descended working piston (mm) | 0-700 | 0-700 | 0-700 | 0-800 | 0-850 |
| Clearance between columns (mm) | 500 | 500 | 500 | 600 | 750 |
| Ram stroke (mm) | 150 | 200 | 200 | 250 | 250 |
| Straining /piston speeds (mm/min) at no load | 0-300 | 0-150 | 0-150 | 0-100 | 0-80 |
| CONNECTED LOAD | - | - | - | - | - |
| HP | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| V | 400-440 | 400-440 | 400-440 | 400-440 | 400-440 |
| PHASE | 3 | 3 | 3 | 3 | 3 |
