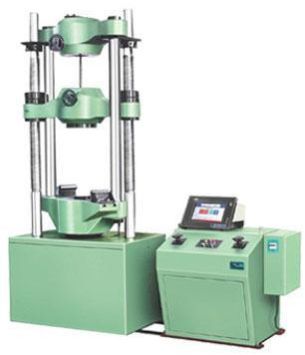

UTE-TS Computerized Touch Screen Universal Testing Machines

Computerized Touch Screen Universal Testing Machines: UTE-TS

Features

\r
• Loading accuracy as high as ± 1%
\r
• Straining at variable speeds to suit a wide range of materials.
\r
• Windows based touch screen control panel with printing connectivity.
\r
• Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
\r
• Wide range of standard and special accessories.
\r
• Easy change from plain to threaded and screwed specimens.
\r
• Large effective clearance between columns enables testing of standards specimens as well as structures.
\r
• Simple controls for ease of operation.
\r
• Robust straining frame of an extremely rigid construction.
\r
• Safe operation ensured by means of safely devices.
\r
• Fully enclosed and protected pressure transducer.
\r
• Manual control & release valve operation.
\r
• Load Capacity:100 kN, 200 kN, 400 kN, 600 kN,1000 kN,1200 kN, 1500 kN and 2000 kN.
\r

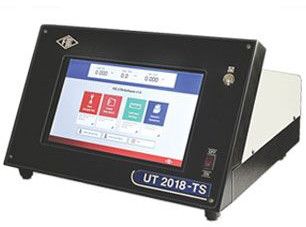

Computerized Touch Screen Control Panel (Series : UT 2018-TS) :

Micro Controller based panel incorporating state of art technology with following features-

\r
• Front panel touch screen display
\r
• Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
\r
• Online graph of load Vs Displacement directly on screen.
\r
• USB Printer port for printer interface with graph & result print out.
\r
• Facility to export the result/ Data to PDF, EXCEL & CSV formats.
\r
• Windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare With standard, zooming graph etc.
