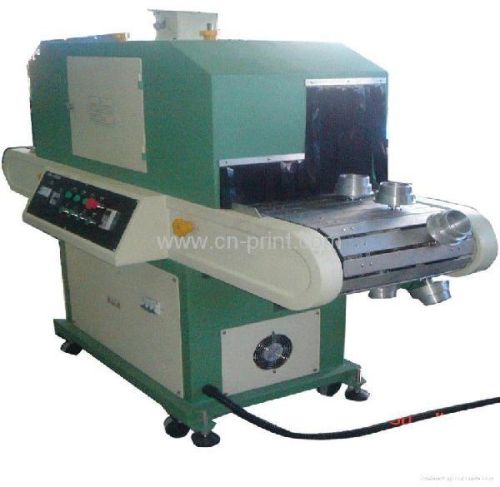

UV Curing Oven For Bottle LC-UV5000S2, Power : 5KW

Product name

UV Curing Oven For Bottle

Model No

LC-UV5000S2

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

LC-UV5000S2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it also  can be used in the UV Ink printing cure of flat substrate, Stainless steel conveyor to resist High Temperature. Step-less speed adjustment to match with different bottles. Suitable for bottles made by plastic, Metal, Glass Etc.

Features

1 .UV drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

Parameter

1. Max UV curing round bottle high :320mm
   2.Max UV curing Products width  :  400mm
   3.UV Curing bottle diameter : 25-100mm (customize)
   4. Curing size of work-piece: Cylinder products :320X400mm
   5.Conveyor speed:0~10m/min ;
   6.(United Kingdom)UV lamp power:4KW
   7.UV Drying products speed：1800~3000PCS/HR
   8.Total power:5KW
   9.Machine dimension: L:2200mm W:600mm H:1700mm

Usage

Bottle printing UV INK ,Plane products printing UV ink

customer

USA, UK, Germany, Spain, South Africa,Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term

 100% T/T in advance(negotiation)
