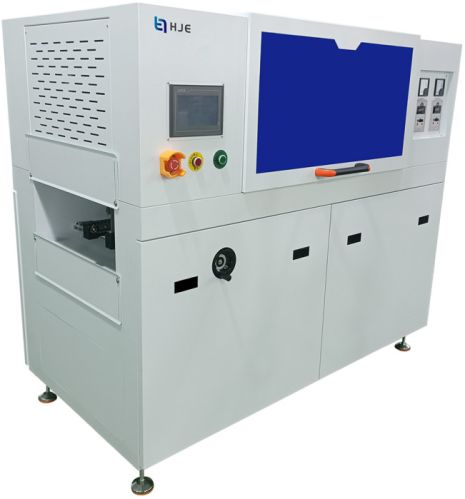

HJE Polished Stainless Steel Electric UV Curing Ovens, Color : White

Product Details

Power9-12kw
Brand NameHJE
MaterialStainless Steel
FinishingPolished
Driven TypeElectric
ShapeRectangular
ConditionNew
Temperature on the surface of the box ≤40℃Import and export height adjustment 10~110 (mm)
UV intensity of illumination 80~200mw/cm2Cooling-down method Air blast cooling
Total power ~12KWUV lamp service life 800h

Features：

1、It has the delay shutdown protection function to avoid irregular deformation of lamps and other components due to uneven heat after shutdown;

2、Counting function of PCB plate material online;

3、Transmission system CVT speed governor;

4、Can test the equipment with each hardware interface;

5、With IO monitoring function, convenient for maintenance;

6、With chain transmission, it can be connected with other SMT devices (providing online signal);

7、With the manual adjustment function of the chain guide rail width;

8、Touch screen human-machine operation interface, greatly facilitate the use of users;

9、It is equipped with a suction fan to facilitate the exhaust gas discharge;

10、Stainless steel chain carries 15kg weight (speed of 50-300mm / min).

Specification:

Model	HJE-UV180
Electric source	Three-phase and five-phase lines are 380VAC 50Hz
UV lamp power * quantity	（Total length is 600, and the luminous body length is 450）
Power density of the UV lamp	75w/cm2
UV intensity of illumination	80~200mw/cm2
Radiation direction	Under the photo type
Minimum UV energy value (at a speed of 5m / min)	150mj/cm²
UV band and main peak wavelengths	Main peak from 280 n m to 420 n m is UVA 365nm
Transmission belt speed	0.5~3m/min Continuous adjustable
Width	100~450mm adjustable
Transmission belt transmission mode	Speed down motor transmission
Conveyor belt to ground height	900 ±25(mm)
Effective irradiation width	450 (mm)
Import and export height adjustment	10~110 (mm)
UV energy deviation (conveying width direction)	Within 20%
Dynamic temperature of the UV room	≤100℃ (When rail speed is 2m/min)
Temperature on the surface of the box	≤40℃
Cooling-down method	Air blast cooling
Air exhaust volume	750m3/h 58mmAq
UV lamp power adjustment	100% Turn light
UV lamp height adjustment	The 120 (mm) UV lamp to the mesh belt distance
UV lamp service life	800h
Total power	~12KW
External dimensions of the host	1800L910W~1860H(mm)
Appearance color of equipment	white
