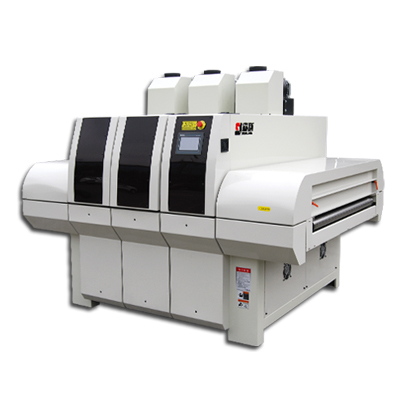

UV Dryer For Board, Brand Name : SENLIAN, Certification : CE

Uv dryer for uv board

function: it applies the strong uv light to react with uv paint and curing in 3 to 5 seconds immediately, this light reaction greatly save the drying time and the storage space without any harmful substance volatilize.
This advanced structure of three uv lamps with intelligent temperature control system reduce the energy extremely, and usually curing the finish in line.

Â�¢ application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.

Â�¢ application board:
solid wood board, ply, mdf, mfc, pb, glass, calcium silicate board, marble, etc.

Â�¢ application paint:
mercury lamp for clear uv, gallium lamp for color uv.

Technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 150mm
working speed 0-25mmin
uv mercury lamp power 5.6kw*35.6kw*39.6kw*3
conveyor î¦25mm
full power 19.8kw19.8kw31.8kw 380v
estimated weight 1550kg1650kg2000kg
overall dimensions 2500*1500*1950mm 2500*1700*1950mm 2500*2000*1950mm

main parts
electric motor bmemb
frequency converter shihlin
electrical appliance chint
voltage transformer copper wire and magnetic flux leakage
control system uv curing control system, lcd screen, coolmay
optional lamp for different uv paint uv mercury lamp, uv gallium lamp, uv iron gallium lamp
