Function:

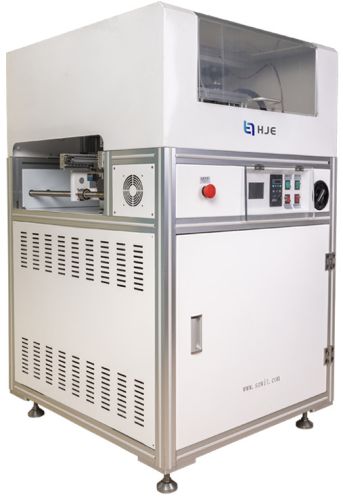

Online UV (LED) curing oven is commonly used for UV glue
bonding and curing of mobile phone screens, suitable for TFT
screens, IPS screens, super LCD screens, and OLED screens.
The light source adopts a dedicated UV LED cold light source,
it does not damage materials such as PVC/TP, and does not
produce ozone, is energy-saving and environmentally friendly.
Â
Specification:
Model | HJE-UV450 |
Product | Online UV curing furnace |
Dimensions | L919*W810*H1380mm |
PCB breadth | 50mm-450mm |
Direction of transfer | â–¡ left-right â–¡ right-left (default left to right) |
Wavelength | 365nm |
Cooling | Fan Cooling |
Weight | 205kg |
Setting | Touch screen can be set brightness, time |
Light source height | Adjustable within 50mm |
Power | 4600W |
Convey height | 900±20mm |
Conveying speed | 0-4500mm/min |
The light area | 314X370mm |
Power Input | 100-240V AC 50-60 HZ |
Number of luminescent heads | There are 2 double-sided curing lamps |
Energy value | The standard value is over 7000 MJ |
Function | The equipment shall support online function, and the form of the chain shall connect with the front and rear machines and support communication with the front and rear machines |
