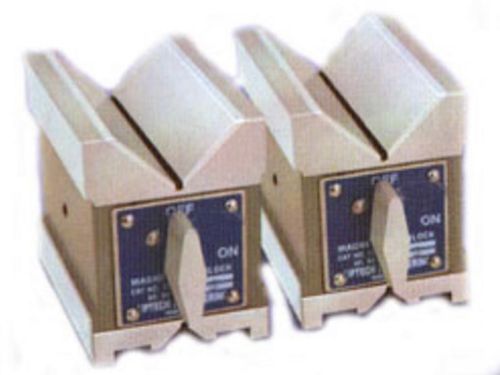

V Block

Features:-
Used for Grinding, Light Milling, Drilling & Inspection of round & Square Jobs.
Accuracy for Flatness, Squareness and Parellelism within 0.0005 mm upto 6"L & 0.001mm for 8"L of "V"block.
The bigger V angle &bottom holding surface are equipped with hardened strips for wear resistance.
Uniform and strong magnetic pull to all three magnetic surfaces Top, Bottom & V face.
Hardness of V face is 60+2 Rc.
Powder Coated.
Easy ON-OFF facility.
120o "V" angle also available.
SIZE:-
40 L X 40 W X 50 H [ 2" ]
40 L X 40 W X 40 H [ 2" ]
75 L X 56 W X 75 H [ 3" ]
75 L X 56 W X 75 H [ 3" ]
100 L X 70 W X 95 H [ 4" ]
100 L X 70 W X 95 H [ 4" ]
150 L X 75 W X 100 H [ 6" ]
150 L X 75 W X 100 H [ 6" ]
200 L X 125 W X 150 H [ 8" ]
200 L X 125 W X 150 H [ 8" ]
