Vande Graff Generator

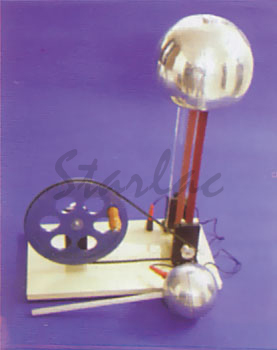

This is a hand driven generator mounted on wooden base. Consist of two Aluminium spheres of dia 150 mm and 75 mm for charge collecting and discharging purpose, respectively. Both the spheres are removable. The discharge sphere is supported on pivoted arm. The large sphere surrounds the upper part of the charge generating belt assembly and charge accumulates on the sphere, when the hand wheel pulley is rotated. The charge generating belt is mounted on a insulated vertical pillar provided with metal brushes. A 4 mm socket is provided at the top of large sphere.
