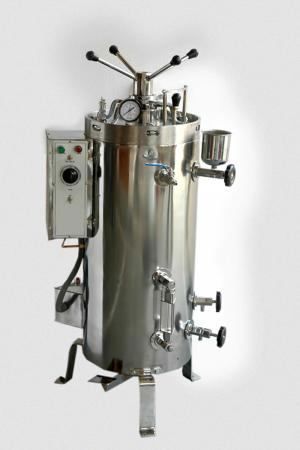

Vertical Autoclave

It is used for sterilization under saturated pressure at any selected point between 10 to 20 p.s.i. (adjustable). these are double walled units with inner chamber (boiler) made of 18 s.w.g. stainless steel and outer chamber is covered with s.s. lid is tightened by radial locking system (as ordered). fitted with neoprene rubber gasket, all system are hydraulically tested up to 40 p.s.i. as a safety measure. all autoclaves are fitted with standard accessories such as water indicator, pressure gauge, steam release cock, low water cut off device, pressure control switch, spring loaded safety valve and heating element. supplied complete with s.s basket, cord and plug to work on 220/230 volts a.c. supply. all these models besides being fitted with stainless steel and having inner chamber made of s.s. and outer chamber covered with stainless steel, are also fitted with vaccum breaker as a safety device. as per the sizes.

Ht. x Dia. Inside Outer M.S. Outer S.S.

• 18” x 10” (450 x 250 mm)
• 20” x 12” (500 x 300 mm)
• 22” x 14” (550 x 350 mm)
• 24''x 18" (600 x 400 mm)
• 24” x 18” (600 x 450 mm)
