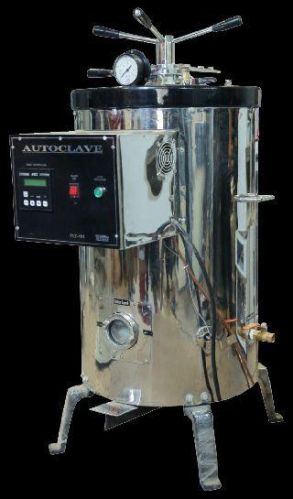

Vertical Autoclave (Fully Automatic) (PLT-101 A)

APPLICATIONS of Fully automatic Vertical Autoclave

Autoclave Vertical are most ideal for critical applications requiring assured and reliable total destruction of all living micro- organisms
Vertical autoclave is low cost options for general sterilization ideal tool for Laboratories, Hospitals, Nursing Homes, R&D labs etc, Pharmaceutical, Food &Beverage Industries and Institutions

SALIENT FEATURES & CONSTRUCTION of Fully automatic Vertical Autoclave

Inner & Outer Chamber, constructed from S. S. 304 Grade
Bucket / Basket Made of Stainless Steel
Water Level Indicator
Lid Closing by Radial Locking System
Sealing of Lid by Neoprene Rubber Gasket
Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve.
Operating range from 15psi to 20psi pressure
Sterilizing Temperature up to 1340C
Tested up to 2.5 times of required Pressure
Fully automatic models requiring no human intervention till a full sterilization cycle is over.
Fitted with a (Programmable Logic Controller) LCD Display with respect to time and temperature.
Enabling user automatic purging of stale air.
Sterilizing hold time system for sterilizing period and cycle end.
Automatic exhaust of pressure.
Audio alarm/ buzzer is raised at the end of the cycle on.
Voltage: 220 Volts AC (50 Hz)

All the instruments can be designed with PLC Based Control Systems (as per customer requirement) with Touch Screen Display / Controller data storage in Pen Drive with Direct Thermal / Dot matrix Printer. All the instruments can be designed with digital control systems (pid based LCD Display 16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.

CONTROL PANEL AND SWITCHGEARS

µProcessor based Controller with time and temperature settable by user.
(Pt-100) sensor, for precise i monitoring.
Low water level alarm and cut off for safety of heater.
End of cycle buzzer.

PARAMETERS	MODEL ACA - 1	MODEL ACA - 2	MODEL ACA - 3	MODEL ACA - 4	MODEL ACA - 5
Inner Dimensions (Dia x Height)	250x450mm	300x500mm	350x550mm	450x600mm	550x750mm
Inches Conversion	10 x 18	12 x 20	14 x 22	18 x 24	22 x 30
Capacity	22 ltrs	40 ltrs	50 ltrs	98 ltrs	152 ltrs
Working Load	2.0 KW	2.0 KW	3.0 KW	4.0 KW	6.0 KW
Gasket	Made of Neoprene Rubber
Sterilizing pressure	1.2 kgf / cm (15psi)at 121°c
Pressure Gauge	0-2.1 kgf / cm² (30 psi)
Operating pressure	From 15 to 20psi (Adjustable)
Inner Pressure Tank	Stainless Steel (SS-304)
Top Lid	Mild Steel Plate lined with Stainless Steel from inside
Basket	Made of Stainless Steel
Lid Tightening	Radial Locking system worked by handle
Lid Opening	Paddle lifting device
Water Level Indicator	Fitted on the outer chamber
Boiler – Hydraulically Tested	Upto +40 psi
Accuracy	+ 3 psi
Controller (PLC Based)	µProcessor Based Fully Automatic Fuzzy Logic Control System.
Display	16x4 line Alphanumeric Digital LCD with backlet display with Set value (SV) and Process Value (PV)
Timer (Auto Time Control) & Buzzer	Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
Safety Device	Spring Loaded Type
Water Draining System	Hand Operated Valve
Heating	BY ISI Marked Immersion Heaters
Steam & Vacuum Release	By Valve
Digital Pressure Controller	With electronic transducer and siphon.
PLC Based Control System	Touch Screen (HMI) with respect to time and temperature programmable by user.
Customized Programme	with inbuilt data recording in pen drive. Facility also available
Power Supply	220/230V AC, 50/60Hz
