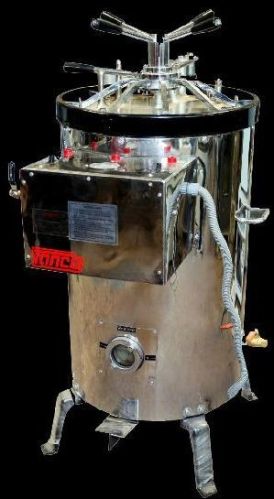

Vertical Autoclave - Triple Walled (PLT-101 C)

APPLICATIONS of Vertical Autoclave Triple Walled

Triple walled High Pressure Autoclave are used where Dry Sterilization is required.
Triple walled High Pressure Vertical Autoclave are most ideal for critical applications requiring assured and reliable total destruction of all living micro- organisms
It is used for sterilizing of surgical instruments, dressing material, linen, rubber, plastic material, injection liquids by means of steam under pressure of 15 to 20 psi. (adjustable).

SALIENT FEATURES & CONSTRUCTION of Vertical Autoclave Triple Walled

Used for Dry Sterilization
Steam Jacket & Outer wall made of S. S. 304 Grade
Water Level Indicator
Lid Closing by Radial Locking System
Sealing of Lid by Neoprene Rubber Gasket
Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve.
Operating range from 15psi to 20psi pressure
Hydraulically Tested up to 40 psi.
Sterilizing Temperature up to 1340C
Tested up to 2.5 times of required Pressure
Voltage: 220 Volts AC (50 Hz)

PARAMETERS	MODEL ACT- 1	MODEL ACT – 2	MODEL ACT – 3	MODEL ACT – 4	MODEL ACT – 5	MODEL ACT – 6
Inner Dimensions (Dia x Height)	250x450mm	300x500mm	350x550mm	400x600mm	450x600mm	550X750MM
Inches Conversion	10 x 18	12 x 20	14 x 22	16 x 24	18 x 24	22 x 30
Capacity	22 ltrs	40 ltrs	50 ltrs	78 ltrs	98 ltrs	152 ltrs
Working Load	3.0 KW	4.0 KW	4.0 KW	5.0 KW	6.0 KW	7.5 KW
Gasket	Made of Neoprene Rubber
Sterilizing pressure	1.2 kgf / cm (15psi)at 121°c
Pressure Gauge	0-2.1 kgf / cm² (30 psi)
Operating pressure	From 15 to 20psi (Adjustable)
Steam Jacket	Stainless Steel (SS-304) argon welded
Top Lid	Made of Stainless Steel
Lid Tightening	Radial Locking system worked by handle
Lid Opening	Paddle lifting device
Water Level Indicator	Fitted on the outer chamber
Boiler – Hydraulically Tested	Up to +40 psi
Accuracy	+ 3 psi
Safety Device	Spring Loaded Type
Water Draining System	Hand Operated Valve
Heating	BY ISI Marked Immersion Heaters
Steam & Vacuum Release	By Valve
Power Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES of Vertical Autoclave Triple Walled

Present Pressure Operation	Automatic Switch Piezostat (Pressure Control Switch)
Heater Safety	Automatic cut-off Device
Pre-set Time Operation	By Mechanical / Digital Timers Analogue 0-60 minutes
Temperature Display	By Dial Type / Digital Temperature Indicators with LED display.
Temperature Recording	Thermograph with / without digital display - Circular Type
