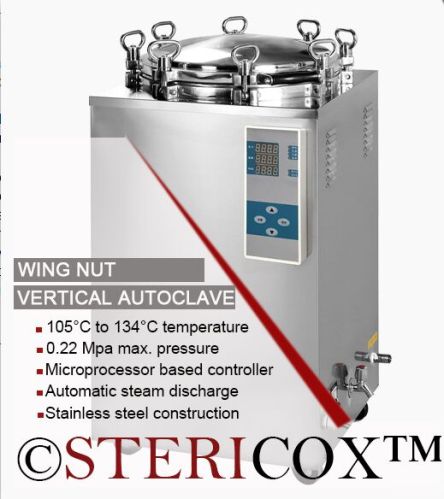

Vertical Autoclave Wing Nut Locking, Power Supply : 220 Volts 50hz

Company Information

Ask for more detail from the seller

Report incorrect details

Temperature105°C to 134°C
Power Supply220 Volts 50Hz
Basket2 Nos. stainless steel sterilizing baskets
Safety featuresLow water level protection, Over temperature protection, Over pressure protection .
FEATURES & BENEFITSWing nut locking mechanism, Self-inflating silicone rubber seal, Microprocessor based controller, Precise sterilization operation .
ControllerSofty key pad controller
Operation modeFully automatic operation, Automatic steam discharge after sterilization, Automatic shuts off with beep alert after sterilization .
MountingCaster wheels
Timer0-99 minutes
Working pressure0.22 Mpa
DisplayLED display of Temperature, pressure & time
ConstructionFully stainless steel 304

STANDARD SIZES / DIMENSIONS

MODEL	INNER DIMENSIONS	VOLUME	WATTAGE
WING35	318 x 450 mm	35 Liters	2.5 KW
WING50	340 x 550 mm	50 Liters	2.5 KW
WING75	400 x 600 mm	75 Liters	4.5 KW
WING100	440 x 650 mm	100 Liters	4.5 KW
WING120	480 x 660 mm	120 Liters	6 KW
WING150	510 x 740 mm	150 Liters	6 KW
