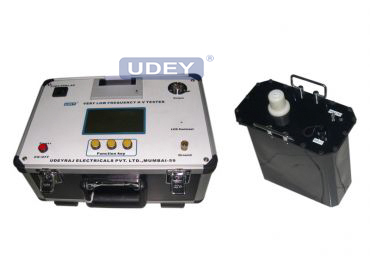

Very Low Frequency HIPOTS

Get Latest Price

220 ± 5% Volts AC, 50 Hz, single phase.30kV / 50kV / 80kV
1) Self-check. if condition is abnormal, tester shuts down & displays ‘Load unconnected’ 2) Mains fuse. 3) Over voltage protection. 4) Over current protection. 5) Protective HV resistor connected inside.In two units: Controller and Booster..
0.1Hz, 0.05Hz, 0.02Hz.Fluctuation < 0.5%
±3%.<3%.
<5%1) Frequency : 0.1Hz, 0.05Hz, 0.02Hz 2) Timing: 0-99 minutes. 3) Test Voltage: Zero to rated kV. 4) Trip Current: Zero to rated mA.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Udeyraj Electricals Pvt Ltd

Marol, Mumbai, Maharashtra

View Number

Member Since 15 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

±3%.<3%.
1) Self-check. if condition is abnormal, tester shuts down & displays ‘Load unconnected’ 2) Mains fuse. 3) Over voltage protection. 4) Over current protection. 5) Protective HV resistor connected inside.In two units: Controller and Booster..
<5%1) Frequency : 0.1Hz, 0.05Hz, 0.02Hz 2) Timing: 0-99 minutes. 3) Test Voltage: Zero to rated kV. 4) Trip Current: Zero to rated mA.
220 ± 5% Volts AC, 50 Hz, single phase.30kV / 50kV / 80kV
0.1Hz, 0.05Hz, 0.02Hz.Fluctuation < 0.5%

Machine Feature

• Programmable micro-controller
• Advanced digital frequency technology
• Built-in printer
• Portable
• AC HIPOT testing of cables and electrical apparatus is now easier than before
• UDEY VLF testers are suitable for testing cables, transformers, switchgear, rotating machinery, & other electrical apparatus.

Model	Output	Load Carring Capacity	Control Unit		Booster
			Dim(cm)	Wt(Kg)	Dim(cm)	Wt(Kg)
VL-32	30kV/20mA	0.1Hz<=1.1µF 0.05Hz<=2.2µF 0.02Hz<=5.5µF	28x37x22	5	33x18x34	25
VL-53	50kV/30mA	0.1Hz<=1.1µF 0.05Hz<=2.2µF 0.02Hz<=5.5µF	28x37x22	6	37x24x39	40
VL-85	80kV/50mA	0.1Hz<=1.1µF 0.05Hz<=2.2µF 0.02Hz<=5.5µF	28x37x22	7	33x18x34 37x24x39	25 40
