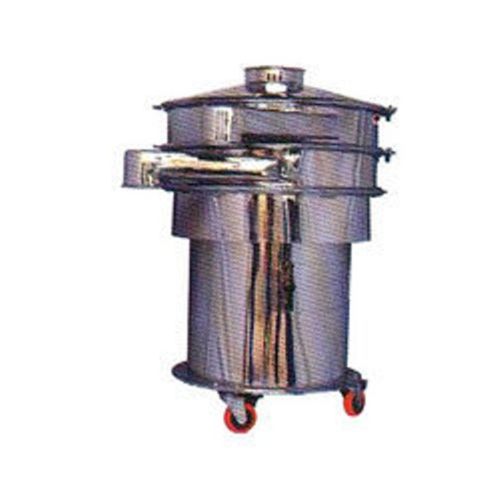

Vibro Sifter Machine

Listing ID #3866331

  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world

Crevice free GMP design; Super tight finish; Bio safe Toxicology Tested; Calibrated & Certified as per International Standards.; Available in S.S 316 and S.S. 304 Quality; Available in sizes ranging....
View More Details
Send Enquiry

Company Information

  • Member Since 16 Years
  • Nature of Business Manufacturer
  • Year of Establishment 1988

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Crevice free GMP design; Super tight finish; Bio safe Toxicology Tested; Calibrated & Certified as per International Standards.; Available in S.S 316 and S.S. 304 Quality; Available in sizes ranging from 30 mm dia to 1220 mm dia.; Import Substitute Designs; Wire Mesh sizes available from 2# to 600 # as per all International Standards





Features





  • Available in various models providing screening diameter of 12", 20", 30", 36”, 48".
  • Portable and compact.
  • Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system.
  • Standard machine are with TEFC motor explosion proof / flame proof motor material (Optional)
  • SS 316/ SS 304 quality contact parts.
  • Special requirement like brushing arrangements, SS lid with charging port and spring loaded outlets.
  • Wide range of screen sizes 4-600 Mesh
  • Double & Triple deck screens with outlet and hopper for bottom deck available on request.
Technical Detail :

Crevice free GMP design; Super tight finish; Bio safe Toxicology Tested; Calibrated & Certified as per International Standards.; Available in S.S 316 and S.S. 304 Quality; Available in sizes ranging from 30 mm dia to 1220 mm dia.; Import Substitute Designs; Wire Mesh sizes available from 2# to 600 # as per all International Standards.;


Sifter 12" Dia. 20" Dia. 30" Dia. 36" Dia. 48" Dia.
Overall Dimensions (mm) 350 X 450 X 1050 mm 600 X 750 X 1250 mm 900 X 900 X 1250 mm 1200 X 1200 X 1250 mm 1350mm X 1350 mm X 1350 mm
Weight 60 Kgs 90 Kgs 120 Kgs 180 Kgs 280 Kgs
Speed (RPM) 1400RPM 1440RPM 1440RPM 960RPM 960RPM
Utility Req. (Electrical) 0.5Hp, 50Hz, 440V A.C., 3Ph 0.5Hp, 50Hz, 440V A.C., 3Ph 0.5Hp, 50Hz, 440V A.C., 3Ph 1.0Hp, 50Hz, 440V A.C., 3Ph 2.0Hp, 50Hz, 440V A.C., 3Ph
Top Lid Provided Conical in shape with hopper Conical in shape with hopper Conical in shape with hopper Conical in shape with hopper Conical in shape with hopper
Clamps, Ring, Sid Covers ETC. (MOC) SS 316/ SS304 SS 316/ SS304 SS 316/ SS304 SS 316/ SS304 SS 316/ SS304

Company Details close-icon

We would like to to introduce ourselves as one of the leading Manufacturer and Exporter for Pharmaceuticals, Chemicals, Petroleum, Cosmetics, Food, Dairy, paints, Tobacco Machineries.
We have specialised manufacturing procedure for being more specialized in liquid, oral and tablet manufacturing section since three decades. We have also been serving other industries apart from the Pharmaceutical industry and constantly Endeavour for newer and advance technologies.
  • Nature of Business Manufacturer / Exporter / Supplier
  • Number of Employees Below 20
  • Year of Establishment 1988
