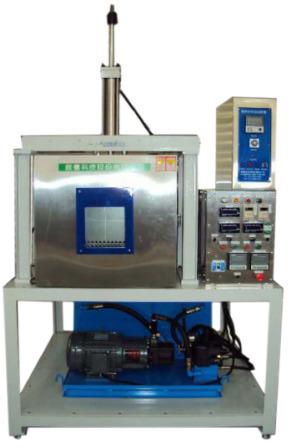

VS-1014H Battery Test Machine

Details

• Standard models comply with UL2054 standard, or can be designed according to your needs. Crush test, nail penetration and temperature cycling (heating) test functions all three in one.
• The top of the test box with explosion-proof transparent glass, easy to observe the test process, the rest of the surface with stainless steel plate for protection, the side reserved for test holes and pressure relief hole.
• Pinning and squeeze plate down speed and force can be adjusted.
• Spike nail can be designed bythe specifications or requirements, and the base can be designed with battery fixture.

Can be used to simulate the battery encountered external acupuncture / extrusion, the appearance of deformation or whether the internal chemical changes :
The acupuncture / extrusion test equipment can be used to simulate the battery when the external acupuncture / extrusion, the appearance of deformation or whether the internal chemical changes, and per the customer needs with the temperature control box to test the external temperature. And with voltage / current or temperature sensor, the software can be used during the test for a variety of data monitoring. Because this test has a considerable risk, so the composition of the overall isolation box is made of anti-collision and heat-resistant material, and equipped with exhaust hole to eliminate the smoke and hot air generated by the battery acupuncture / extrusion . In addition, in order for monitor convenience and the safety of the testers, the isolation box can also be installed in accordance with customer demand, so as to achieve remote monitoring and operation, and can reduce the abnormal harm generated by the personnel in the use of the battery.
