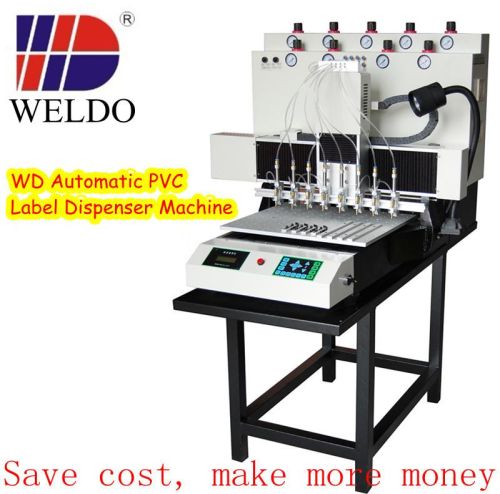

Iron Wd Automatic Soft PVC Dispenser Machine, Certification : CE

WD automatic soft pvc dispenser machine for key chain is full-automatic pvcsilicon plastic dispenser machine with 8 colors .which is specialized in the manufacture of pvc injection label of well-performance.

Parameter:
Model: WD450*650 8A
Running Distance : X: 450mm Y:650mm Z: 70mm
Working Table Size: 450*500mm
Working Speed : 12000mmmin
Position Accuracy: 0.01mm
Analysis Ability: 0.001mm
Transmission: Rolling screw drive
Table load: 15KG
Power: 220V 50HZ 300W

The soft pvc production process are as follow:
Dispensing fonts---Heating to make pvc curing---add base material---dynamic cooling stereotypes---stripping products from mould---finished product

Specifications:
1,With CE approval
2,Easy to use
3,Equipped servo motor
4,Low maintenance
5,Complete automatic
6,Best software for machine


We can modify and customized serious dispenser machine as customer required ,and add special software function for the machine,Follow specification are for you reference.
Parameter

Model Run Distance(mm) Table Size(mm) Table Load(KG) Transmission Target Market
X Y Z X Y
WD380*360 380 360 70 372 382 15 Rolling Screw Drive Soft PVC labels
WD480*360 480 360 70 492 382 15 Rolling Screw Drive Double moulds & shoe cover
WD580*360 580 360 70 582 382 15 Rolling Screw Drive All Kinds Of Crafts and Gifts
WD380*600 380 600 70 372 500 15 Rolling Screw Drive Soft PVC Photo Frame
WD480*600 480 600 70 490 500 15 Rolling Screw Drive Grass Mat, Cup Skin
