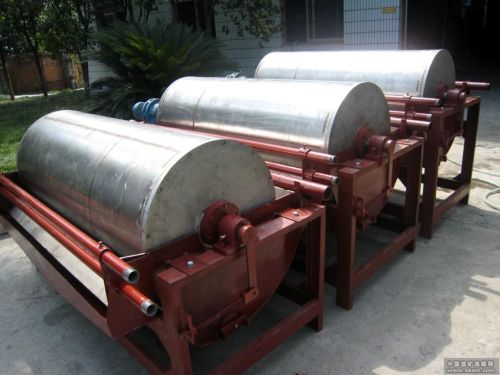

Wet and Dry Drum Magnetic Separator, Brand Name : ＨＵＩＭＡＣ

S type or B type Magnetic Separator is very popular with Chinese people; the max drum diameter is 1.5m with the length of 3.5m. Specific to first dressing and tailings of the mineral separation, the kind of machine is highfield and good capacity in high recovery ratio.
The tub of wet type magnetic separator is divided into 3 kinds, S, B and N, so can be customized to choose the suitable tub on basics of the different feeding size and discharging size.
1．S tank type
This kind of magnetic separator is suitable for roughing minerals and purification with a granularity ≤ 6mm.
2. B tank type
Apply to concentrating minerals and purification of tailings with a granularity ≤ 5mm, the sparge pipe below the tanks can make the rock-magma floating, which can improve the efficiency and good quality.
3. N tank type h
The feeding (size ≤ 3mm) is in an opposite direction of drum working and ore moving, which enlarges the time of concentrating minerals, so the product quality is the best of three.
Basic tectonic parameter
Model Shell Diameter(mm) Capacity(T/h) Power(Kw) Dimensions(mm) Weight
HYB-69 Ф600х900 8-15 1.5 1830*1100*1120 600
HYB-612 Ф600х1200 15-20 1.5 2130*1100*1120 750
HYB-618 Ф600х1800 20-30 3.0 3730*1100*1120 1000
HYB-7515 Ф750х1500 30-40 2.2 2470*1210*1300 1050
HYB-7518 Ф750х1800 35-45 3.0 2770*1210*1300 1200
HYB-7521 Ф750х2100 40-50 4.0 3070*1210*1300 1300
HYB-918 Ф900х1800 35-55 4.0 2850*1360*1470 1450
HYB-921 Ф900х2100 40-60 4.0 3150*1360*1470 1650
HYB-1021 Ф1000х2100 55-110 5.5 3210*1450*1620 2200
HYB-1024 Ф1000х2400 65-125 5.5 3510*1450*1620 2500
HYB-1224 Ф1200х2400 70-125 7.5 3520*1690*1820 3300
HYB-1230 Ф1200х3000 90-150 7.5 4150*1690*1820 3800
HYB-1530 Ф1500х3000 120-180 11.0 4250*2190*2120 4450
HYB-1535 Ф1500х3500 140-200 11.0 4750*2190*2120 4800
The magnetic separator can be customized to the required model in the magnetic field strength range of 2400-7500 gausses.
The advantages
Good capacity and high efficiency, high recovery
Improves purification of iron ore.
