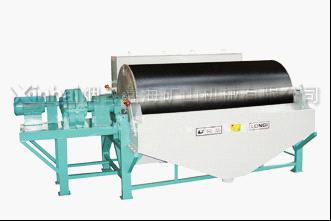

Wet Medium Intensity Magnetic Separator (Tailings Discarding Before Grinding)

We are offering wet medium intensity magnetic separator (tailings discarding before grinding) etc.
Introduction
magnetic separation is a process in which magnetically susceptible material is extracted from a mixture using a magnetic force. And this machine is used for pre-separation of the ball mill, and used for removing railings before the discharging of autogenous mill.
features
drum surface is covered with porcelain or lnt abrasion resistant rubber with long life expectancy.
feeding iron grade is improved by greatly removing gangue.
greatly improving the handling capacity, reducing milling cost, remarkable economic advantage.
specially used in preselecting and removing gangue when discharging coarse particles (0~18mm)
application
wet medium intensity magnetic separator is used for pre-separation of the ball mill ，it removes the tailings before the discharging of autogenous mill.
working principle
after fine particle ores (18~0mm) are fed into the tank of magnetic separator, they enter magnetic selection area under the influence of the water flow spurted from sparge pipe. The magnetic particles are absorbed to the drum surface because of magnetism of magnetic body and rising with the drum. When magnetic particles are taken to the discharging area by drum, the wash water pushes them into the magnetic product trough. Under the action of ore pulp flow in the trough, the non-magnetic materials flow into non-magnetic product pipe through the hole of baseboard.
technical parameters
model drum
dimensions (mm) average drum
surface magnetic
intensity at ore
separating area
(mt) rotating speed
of the drum separation
particle size capacity (t/h) motor model motor power(kw) weight
ct2-66 φ600×600 250-450 42 0-16 8-15 xwd1.5-4-35 1.5 825
ct2-69 φ600×900 12-20 xwd2.2-4-35 2.2 999
ct2-79 φ750×900 35 0-18 15-30 xwd3-4-43 33 1375
ct2-712 φ750×1200 20-40 1834
ct2-99 φ900×900 31 25-50 xwd-4-4-47 44 1540
ct2-912 φ900×1200 30-60 2053
ct2-916 φ900×1600 35-75 xwd5.5-4-47 5.5 2637
ct2-1010 φ1050×1000 21 40-80 xwd7.5-4-71 2700
ct2-1015 φ1050×1500 50-100 7.5 3300
ct2-1020 φ1050×2000 60-120 5400
ct2-1212 φ1200×1200 17 80-150 xwd7.5-4-87 5325
ct2-1218 φ1200×1800 100-180 5700
ct2-1224 φ1200×2400 150-220 xwd11-4-87 11 6500
