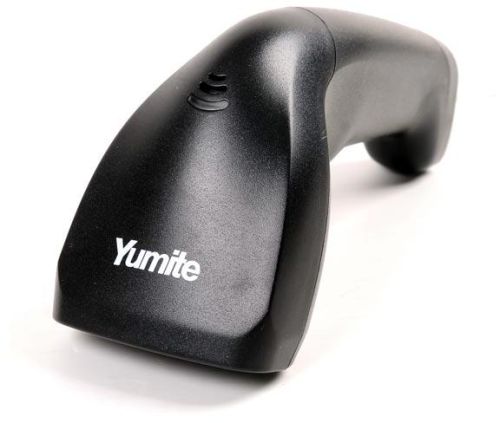

Wired Laser Barcode Scanner

Light source type visual lasing diode; the wave length is 650mm.
Trigger mode manul
scanning mode single-line scanning
scanning speed 100â±2 times s
resolution >4mil
printing contrast ratio the lowest reflectivity difference is 30%
bit error rate 150 million
input voltage 5vdcâ±0.25v
power 250mw (work): 325mw (momentary maximum)
current 50ma (work): 65ma (momentary maximum)
standby current �20ma
light intensity 3000-12000lux
depth of field 5mm-630mm
scanning angle â±60â°â±65â°â±42â° (left and right, front and back, rotation)
decoding capacity upceanjan, upcean with supplemental, uccean 128, code 39, msi, code11
code 39 full ascii, code 39 trioptic, code 128, code 128full ascii
codabar, code93, discrete2of5, iata, rssvariants, codabar, chinese2of5,
international general dimensional barcodes, e.g. Inteleaved25, interleaved2of5 and china postal service code
prompt mode buzzer and led indicator
cable interface usb (standard): ps2 and rs232 are selectable.
External dimensions l*w*h: 158mm*68mm*96mm
weight 170g (excluding cables)
cable standard straight line,1.8m
interface type rj-45 crystal head
hull material abs+pc
temperature 0� to 50� (work): -40� to 60� (storage)
setting mode manual (scanning and setting barcodes according to the sequence)
safety regulations laser safety class: en60825-1, class 1, state level-i laser safety standard
emc: en55022,en55024
electrical safety: en60950-1
packaging level: ip52
