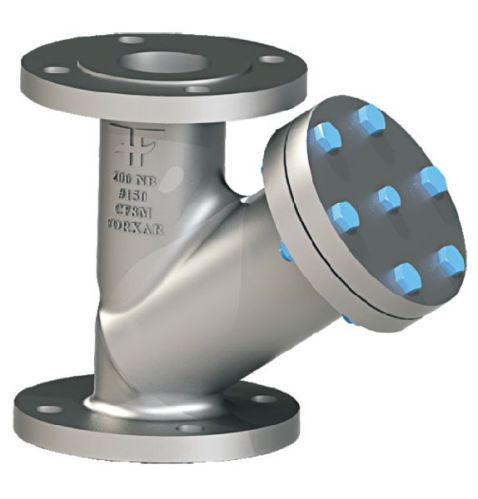

Y-Type Strainer Valve

Minimum Order Quantity : 50 Piece(s)
Sold By : Forxar Industries Pvt Ltd.

Product Specifications

MaterialStainless Steel
Number Of FlowerY
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Class 150 Flanged End Connections Sure Flow Class 150 ASME Flanged strainers are available in Carbon Steel and Stainless Steel. A Machined, tapered seat ensures a perfect fit for the removable, stainless steel screen. Size 2” and larger come complete with flanged blow-off cover, gasket & plug. 1 ½” and smaller come complete with solid threaded cover and gasket. May be installed in vertical or horizontal pipelines with blow-off connection at the lower end of the screen.

Construction
Carbon Steel : Body, Cover – ASTM A216 Grade WCB Stainless Steel : Body, Cover – ASTM A351 Grade CF8M All screens are Stainless Steel

Standard Screens
Size	Standard	Opening
½”- 1 ½”	1/32” perf	0.032”
2” – 3”	3/64” perf	0.045”
4” – 24”	1/8” perf	0.125”

Operating Pressures and Temperatures
Type	Size	psi @ Temp Steam	psi @ Temp WOG
YF 150	½”- 24”	150 @ 358 oF	285 @ 100 oF
YF150SS	½”- 12”	150 @ 358 oF	275 @ 100 oF

Download

Download Detail File : Click Here
