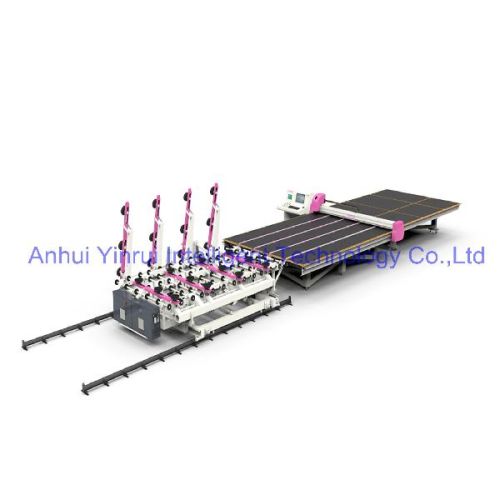

YR-4228 Automatic Glass Cutting Machine

₹ 52.49 Lakh / Set

MOQ1 Set(s)
Gross weight2.5T
Glass thickness3-19mm
Cutting bridge acceleration≥ 3.0m/s²
Linear parallelism≤±0.25mm/m
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Anhui Yinrui Intelligent Technology Limited Company

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Cutting bridge speed0〜160m/min
Cutting head accuracy≤±0.2mm
Power (installation)415V/50HZ
Max glass size4200*2800
Compressed air0.6Mpa
Cutting bridge acceleration≥ 3.0m/s²
Cutting tool acceleration≥ 6.0m/s²
Belt transmission speed≥ 40m/min
Cutting tool speed≥160m/min
Linear parallelism≤±0.25mm/m
Gross weight2.5T
Glass thickness3-19mm
The diagonal accuracy≤±0.30mm/m

Â�² equipped with electronic squaring device and scan cad software.
Â�² diaphragm pressure is controlled via solenoid valve and spring to ensure the cutting range from 2 up to 25mm.
Â�² simplified operator interface, support multi-languages.
Â�² match with erp and optimized system.
Â�² adopt to closed-loop control system to ensure accuracy.
Â�² imported cutting head from germany to ensure cutting accuracy and efficiency.
Â�² twin cutting lubrication system with oil flow concentrated on the score.
Â�² the basement is rectangle structure, stable and rigid.
Â�² the machine is controlled by numerical control, the four axis x, y, z and c. X, y and c drive by serve motor, and z controlled by valve.
