Ground & Phase Protection Relay

Our product range contains a wide range of 4KV Cable Fault Locator, 8KV Cable Fault Locator, 16KV Cable Fault Locator and 32KV Cable Fault Locator

4KV Cable Fault Locator

4KV Cable Fault Locator
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Operating Temperature 0o C to 55o C
  • Power Supply 230V AC, +/10 %, 50 Hz , Single Phase
  • Output Voltage 0 2 / 0 4 kV DC Continuously variable
  • Output Energy 500 Joules
  • Impulse Operation Auto & Manual
  • Impulse sequence in Auto mode 4 Sec , 6 Sec
  • Duty Cycle 2 Hrs continuous
  • Storage Temperature 0o C to 60o C
  • Weight 60 kg Approx

Features :

  • Portable . Mounted on castors , easy to carry and use on the field.
  • MANUAL and AUTO operation with selectable impulse sequence.
  • Capacity enhancement possible.
  • Safety interlocks for ease of operation and protection. .
  • Builtin automatic discharge of cable under test in event of power failure or after switching off.
  • Capable of prolonged operation in case of 'Hard to locate' faults.
  • Robust system for indoor as well as outdoor use.

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

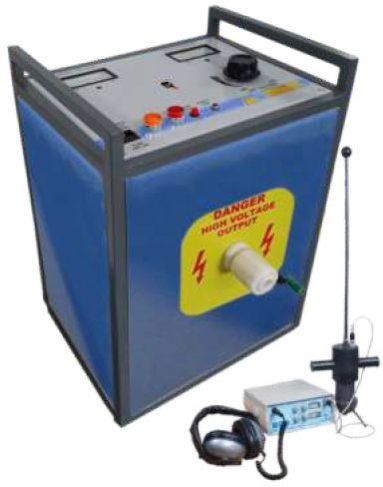

8KV Cable Fault Locator

8KV Cable Fault Locator
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Operating Temperature 0o C to 55o C
  • Power Supply 230V AC, +/10 %, 50 Hz , Single Phase
  • Output Voltage 08 Kv Dc Continuously Variable
  • Output Energy 500/1000 Joules
  • Impulse Operation Auto & Manual
  • Impulse Sequence in Auto Mode 4 Sec , 6 Sec
  • Indication ON/OFF indication
  • Storage Temperature 0o C to 60o C
  • Weight 60 kg Approx

Features :

  • Portable . Mounted on castors , easy to carry and use on the field.
  • MANUAL and AUTO operation with selectable impulse sequence.
  • Capacity enhancement possible.
  • Safety interlocks for ease of operation and protection. .
  • Builtin automatic discharge of cable under test in event of power failure or after switching off.
  • Capable of prolonged operation in case of 'Hard to locate' faults.
  • Robust system for indoor as well as outdoor use.

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
16KV Cable Fault Locator

16KV Cable Fault Locator
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Operating Temperature 0o C to 55o C
  • Power Supply 230V AC, +/10 %, 50 Hz , Single Phase
  • Output Voltage 016 Kv Dc Continuously Variable
  • Output Energy 500 Joules
  • Impulse Sequence in Auto Mode 4 Sec , 6 Sec
  • Indication ON/OFF indication
  • Type of Cooling Air Cooled
  • Storage Temperature 0o C to 60o C
  • Weight 65 Kg Approx

Features :

  • Portable . Mounted on castors , easy to carry and use on the field.
  • MANUAL and AUTO operation with selectable impulse sequence.
  • Capacity enhancement possible.
  • Safety interlocks for ease of operation and protection. .
  • Builtin automatic discharge of cable under test in event of power failure or after switching off.
  • Capable of prolonged operation in case of 'Hard to locate' faults.
  • Robust system for indoor as well as outdoor use.

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
32KV Cable Fault Locator

32KV Cable Fault Locator
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Operating Temperature 0o C to 55o C
  • Power Supply 230V AC, +/10 %, 50 Hz , Single Phase
  • Output Voltage 08 kV, 016kV, 032 kV DC Continuously variable
  • Output Energy 1000 /2000 Joules
  • Impulse Operation Auto & Manual
  • Impulse Sequence in Auto Mode 4 Sec , 6 Sec
  • Indication ON/OFF indication
  • Type of Cooling Air Cooled
  • Storage Temperature 0o C to 60o C
  • Weight 90 Kg Approx

Features :

  • Portable . Mounted on castors , easy to carry and use on the field.
  • MANUAL and AUTO operation with selectable impulse sequence.
  • Capacity enhancement possible.
  • Safety interlocks for ease of operation and protection. .
  • Builtin automatic discharge of cable under test in event of power failure or after switching off.
  • Capable of prolonged operation in case of 'Hard to locate' faults.
  • Robust system for indoor as well as outdoor use.

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
