Measuring Instruments & Equipment #1978234

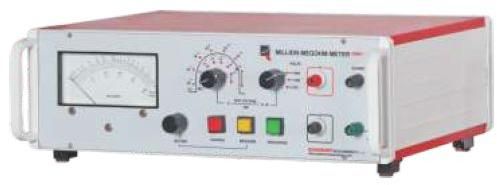

Million Megohm Meter

Condition New Used
Power 100W
Power Source Electric
Application Household, Industrial, Laboratory
Certification CE Certified, ISO 9001:2008
Feature Durable, High Accuracy, Light Weight, Low Power Consumption, Stable Performance
Voltage 110V, 220V
Display Type Analog, Digital
Country of Origin India
Range 10 Meg Ohm to 10 6Meg Ohm
Accuracy +2% of reading for first two ranges
Display 4 ” Taut Band Panel Meter
Overload Protection P rotected against wrong selec􀀈on of Range or object breakdown under test
Power Supply 2 30VAC + 10%, 50Hz

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

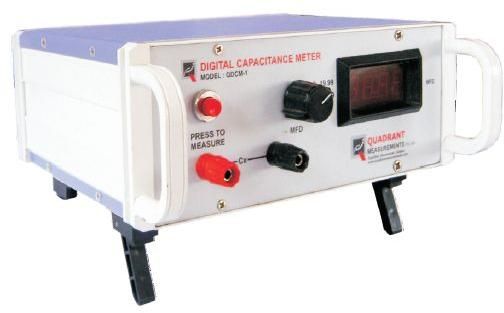

Digital Capacitance Meter

Min. Order (MOQ) 1 Piece
Power Source Battery, Electric
Application Indsustrial Usage, Power Monitor
Certification CE Certified, ISO 9001:2008
Feature Accuracy, Durable, Light Weight, Lorawan Compatible, Low Power Comsumption, Multi Jet, Stable Performance
Voltage 3-6VDC
Country of Origin India
Range 0.01 F to 1000 F in 3 ranges
Accuracy ± 1 % of the reading ± 1 digit
Test Frequency 120Hz, ± 5 %
Display 3 ½ Digit LED Display
Power Supply 230V AC, 50Hz, 1 Phase

Features :

Two wire Measurement
Specially designed for Power Capacitor manufacturer
3 ½ Digital LED Display
Discharge facility before measurement
Stable and fast measurement

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

QDCM1 Capacitance Meter

Min. Order (MOQ) 1 Piece
Country of Origin India
Range 1pF to 199.9 nF in 3 ranges
Accurac ± 1 % of the reading ± 1 digit
Test Frequency 1KHz, ± 5 %
Display 3 ½ Digit LED Display
Power Supply 230V AC, 50Hz, 1 Phase

Features :

Two wire Measurement
Specially designed for Power Capacitor manufacturer and Substation testing
3 ½ Digital LED Display
Stable and fast measurement
The meter can be widely used for quality control on production line, at substation for power capacitor measurements, incoming inspection, and component evaluation.
Robust design lowfrequency capacitance measurement meter with easy operation, intelligence, convenient and applied functions, high measurement speed Highquality performance at a low cost.
The QDCM1 Digital Capacitance Meter offers solid value in an industrial quality meter.
Allows reliable and repeatable measurements of specimen like high voltage machines even under induced or residual voltages.

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

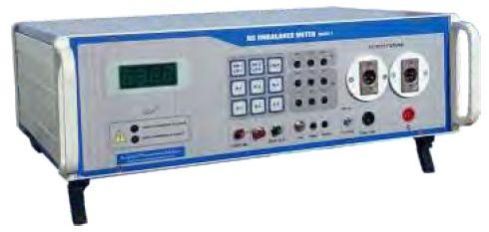

RC Unbalance Meter

Country of Origin India
Indication 3½ Digit Panel Meter with sign
Minimum Loop Resistance 1 Ohm
Selection of Parameters By means of Feather touch switch on front panel
Power Supply 230 V ± 15%, 50 Hz
Resistance Unbalance DR1, DR2, DR3
Capacitance Unbalance Pair to pair K1, K2, K3

Features :

User selectable testing measurement MODES
Compact and light weight instrument
Micro Controller design for ease of operation
small portable, light weight constructed in
Best Resolution for all parameters
Data download Windows based software (Optional)
Automatic Operation for 2 Pairs with QCTS2 Software (Optional)
Parameter Measurement : CR, RU, LR, K1, K2, K3, E1, E2, E3

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

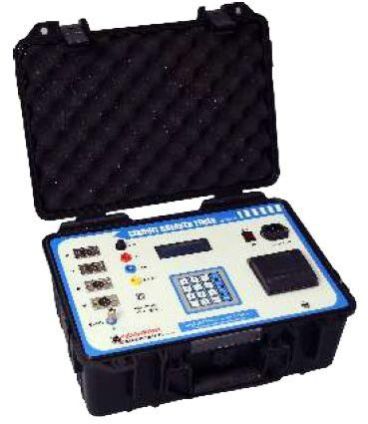

QCBT-1 Circuit Breaker Timer Kit

Min. Order (MOQ) 1 Piece
Feature Automatic Operation, No Balancing Is Required, Measures And Displays Transformer Ratio, Fully Protected Against Any Wrong
Country of Origin India
Power 230V AC, 50Hz, 1 Phase
Display 4 Line backlight LCD display
Poles Three / Four user selectable
Ranges up to 9999.9 mSec
Resol 0.1mSec
Accuracy 0.05% + 1Digit
Modes Close, Open, CO with Bounce 􀀳me

Features :

User selectable 3 / 4 pole measurement
Compact and light weight instrument 0 to 9999.9mSec
Small portable, light weight constructed in
Suitcase for field use.
Resolution : 0.1ms
Builtin Thermal Printer to PRINT test results.
Data download Windows based software

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

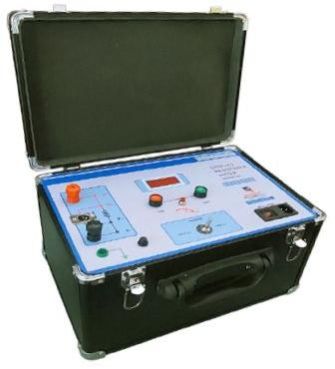

Contact Resistance Meter Without Printer

Min. Order (MOQ) 1 Piece
Color Black
Power Source Electric
Country of Origin India
Power Supply 230V AC, 50Hz, 1 Phase
Display 3 ½ Digit LED Display
Operating Temp 5 Deg C to 45 Deg C
Temp Coeficient 50 PPM

Features :

True Four Terminal Measurement
100 Amp DC Constant Current Source
3.5 Digit LED display
0.1uOhm resolution
Current Measurement (op?onal)
Fast Response time
Stable and fast measurement

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

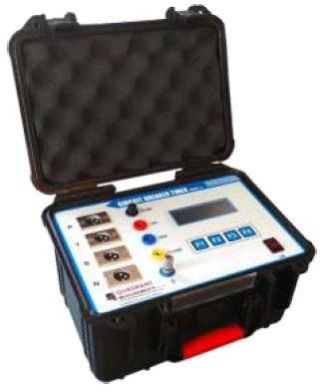

QCBT-2 Circuit Breaker Timer Kit

Min. Order (MOQ) 1 Piece
Power 230V AC, 50Hz, 1 Phase
Country of Origin India
Display 4 Line backlight LCD display
Poles Three / Four user selectable
Ranges up to 9999.9 mSec
Resolution 0.1mSec
Accuracy 0.05% + 1Digit
Modes Close, Open, CO with Bounce time

Features :

User selectable 3 / 4 pole measurement
Compact and light weight instrument
Highly accurate 0 to 9999.9mSec
Small portable, light weight constructed in suitcase for field use.
Resolution : 0.1ms

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

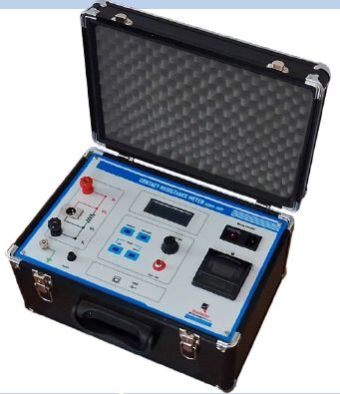

Contact Resistance Meter With Printer

Min. Order (MOQ) 1 Piece
Color Black
Power Source Electric
Country of Origin India
Power Supply 230V AC, 50Hz, 1 Phase
Display 20 X 4 Backlite LCD Display
Operating Temp 5 deg C to 45 deg C
Temp Coeficient 50 PPM

Features :

True Four Terminal Measurement
100 Amp DC Current Max
3.5 Digit LCD display
0.1uOhm resolution
Fast Response time
Builtin Thermal Printer
Builtin memory for 100 results
Data Download via RS232 / USB port

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

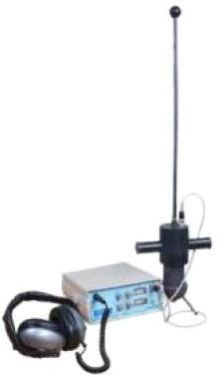

Surge Wave Receiver

Min. Order (MOQ) 1 Piece
Country of Origin India
Power Supply 1.5V X 8 AA size batteries
Operating Time More Than 15 Hrs Continuous Operation
Amplification More than 96 dB for both channels
Operating Temperature 0o C to 55o C
Storage Temperature 5o C to 60o C
Weight 1.5 Kg Approx

Features :

Guides the operator to be on the route of cable while locating cable fault.
Dual Display for indicating intensity of ACOUSTIC and MAGNETIC channel.
Separate loudness , gain & level control for ACOUSTIC and MAGNETIC channel.
BATTERY CHECK function and BATTERY LEVEL indication.
Back lighting facility to permit night time operation.
MUTE function to eliminate all surrounding disturbing noise.
Clear ACOUSTIC signal with good noise immunity.
Robust construction.

Click Here To View Catalogue

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
