Testing Equipments

Our product range contains a wide range of Manual Oil Insulation Test Set, 3 Phase Relay Test Kit and QTRM-3 Transformer Turn Ratio Meter

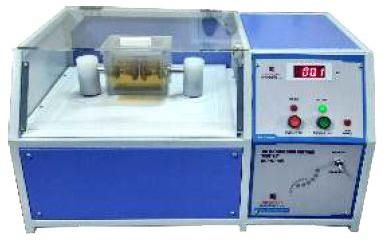

Manual Oil Insulation Test Set

Manual Oil Insulation Test Set
  • Min. Order (MOQ) 1 Set
  • Country of Origin India
  • Output Voltage 0-100KV AC
  • Accuracy ± 2% of reading ± 1 digit
  • Resolution 1 KV
  • Display Analog Meter
  • Rate of Rise of Voltage 2KV/s
  • Power Supply 230VAC, 50Hz, Single Phase
  • Controls HT ON, Increase, Deacrese
  • Protections Interlock for HV Chamber Over load / Over voltage protection

Features :

  • Rate of rise of Voltage 2 KV per second
  • Suitable for ICE-156, IS: 6792 standards
  • KV meter continues to indicate breakdown voltage even after breakdown
  • Test voltage can be held at any desired level for Withstanding test

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
3 Phase Relay Test Kit

3 Phase Relay Test Kit
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Input 440V, 3 PHASE supply, 50Hz
  • Output Three Phase Current O/p 1) 0 30 Amp each phase
  • AC Volt Output Con􀀈nuously variable 0 230V Capacity 150 VA (Max) Single Phase
  • Time Measurement 0 0.001 to 9999 Sec in four ranges
  • Measuring CT Mul􀀈 ra􀀈o wound primary current transformer
  • Current Metering Digital Meter Basic Range : 0 1A AC Scaled in 0 to 100% for all selected range Accuracy : 1.5% of FS

Features :

  • Potentoal free
  • start and stop signal
  • Continuously adjustable outputs
  • Portable Models
  • Digital Ammeter, Voltmeter and time interval meter (Unitimer) UniTimer automatically puts OFF the output, when timer reaches to its maximum value of the selected range to ensure safety of the instruments as well as the item under test. Wide range of measurement, i.e. From 0. 001 second. To 9999 Seconds

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

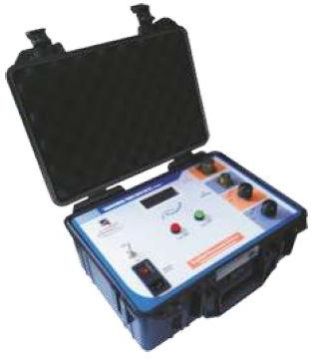

QTRM-3 Transformer Turn Ratio Meter

QTRM-3 Transformer Turn Ratio Meter
  • Min. Order (MOQ) 1 Piece
  • Power Source Electric
  • Country of Origin India
  • Ratio Range 0.8 - 2000 (Autoranging)
  • Accuracy + 0.5% FSD + 3 Digits
  • Display. 20 X 4 LCD
  •  Power Supply 230V AC, 50Hz, single phase.
  • Test Voltage 10 and 110 VAC user selectable

Features :

  • Automatic operation, No balancing is required
  • Measures and displays transformer Ratio &
  • Excitation Current
  • True 4 terminal measurement.
  • Fully protected against any wrong connections.
  • Single Phase / Three phase model
  • Download via USB port (optional)

Click Here To View Catalogue


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
