We are leaders in the market for providing best range of Gun Metal Bushing

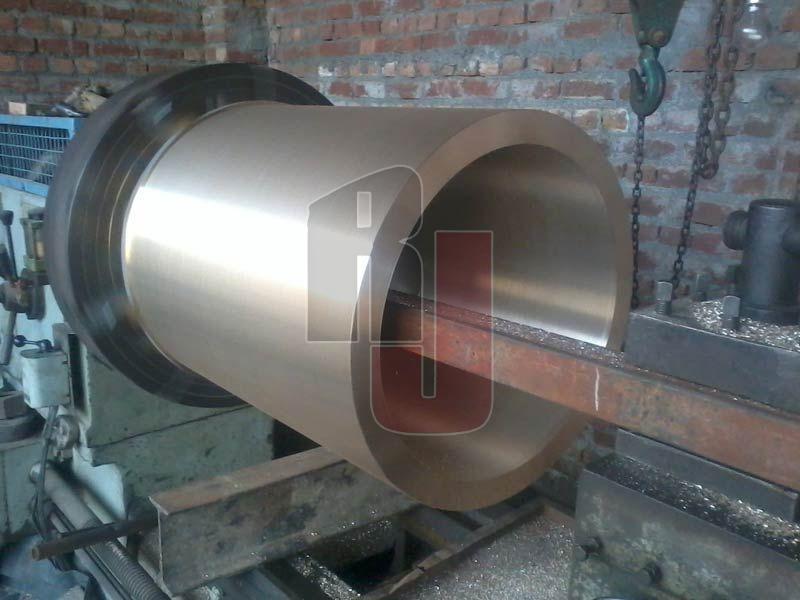

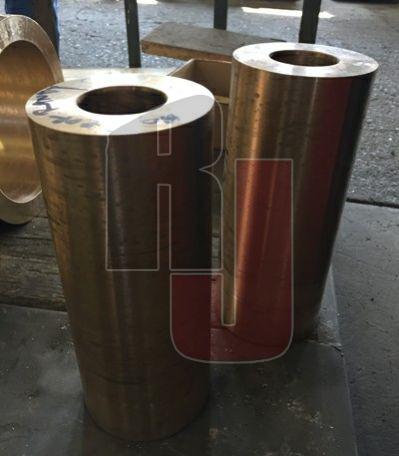

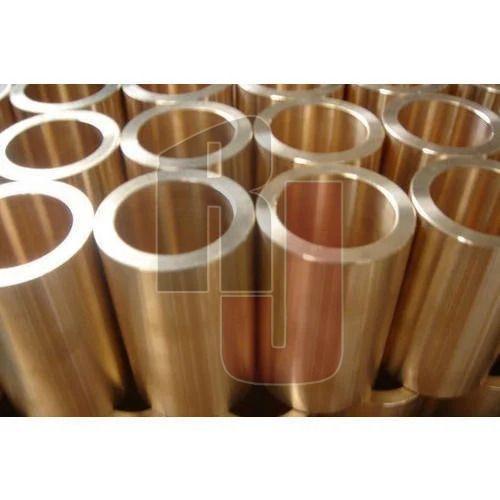

Gun Metal Bushes manufactured by us are as per IS:10742-1983 Specification. Bushes manufactured by us range from Nominal Bore of 10mm to 500mm & from there to greater than 1 Meter which come in form of rings. Bushes are manufactured as cast and then proof machined with machinable tolerances to be supplied to the end user. In our Foundry, Bushes are manufactured as per three grades as tabulated below: -
| Constituents | Percentage Composition | ||
|
| Grade -1 | Grade - 2 | Grade - 3 |
| Tin | 4.0-6.0 | 6.0-8.0 | 9.5-10.5 |
| Zinc | 4.0-6.0 | 1.5-3.0 | 1.75-2.75 |
| Lead | 4.0-6.0 | 2.5-5.5 | 0-1.5 |
| Nickel | 2.0 Max | 2.0 Max | 1.0 Max |
| Iron | 0.35 Max | 0.35 Max | 0.15 Max |
| Aluminium | 0.01 Max | 0.01 Max | ------------- |
| Total Impurities | 0.8 Max | 0.7 Max | 0.5 Max |
| Copper | Remainder | Remainder | Remainder |
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T,
Packaging Details : They are packed in Poly Sacks & Gunny Bags after which they are wrapped inside a sheath of Hay before being loaded on to containers. They are also packed in Jute Cloth and loaded loose on the vehicle.
Delivery Time : As Per Order & Quantity & Criticality of Manufacture
